EPM Series
Ergonomic Pail Mixer
Improve ergonomics and batch process time with this innovative pail-mixer design from HMJ Tech. The patented counter-balance arm raises and lowers with minimal effort. Locks into place when lowered and shuts-off power to the mixer when raised. Setup is easy with unit shipping pre-assembled and ready in a small-parcel package. Operation requires only a single air hose attachment.
Accommodates three 5 gallon pails
Features:
• NO ASSEMBLY REQUIRED
• SUPERIOR ERGONOMICS
• EASY TO CLEAN
- Impeller drip tray
(removable/washable)
• EASY TO OPERATE
- Spring assisted
- 3 position rotation for
multiple pails
• FITS MOST PAILS
• MECHANICAL AIR SAFETY
INTERLOCK
- Motor stops when raised
- Motor will not automatically
start when lowered
• ATEX / EXPLOSION PROOF*
• ANCHOR HARDWARE
INCLUDED
| PART # | DESCRIPTION | Shaft Size |
|---|---|---|
| EPM 1.0 | Ergonomic Pail Mixer 1.0 HP | 11" x 3/8" |
| EPM 1.0 LF | Ergonomic Pail Mixer Lube Free 1.0 HP (Lube Free) | 11" x 3/8" |
| EPM 1.7 | Ergonomic Pail Mixer 1.7 HP | 11" x 3/8" |
| EPM 1.7 LF | Ergonomic Pail Mixer 1.7 HP (Lube Free) | 11" x 3/8" |
Call us to learn about available upgrades
*Proper installation and grounding required
** LF model 90 psi max
Specifications
- Accommodates pails DIAMETER 15.0” / HEIGHT 9.8”-15”
- Motor: 1.0 HP / Max Speed: 3,000 RPM (Lube Free Optional)
- Compressed air supply: (100 psi max, 30 cfm)**
- Utilizes Fawcett MixedFLOW ™ Impeller
- Construction material: Industrial Grade SS Frame & Wetted Parts
- Controls: Variable Speed Control Valve On/Off
- Dimensions: 19.5” Wide X 19.5” Deep X 39.5” Tall (Head Raised)
- Weight: 40 lbs
- Shipping: 1 Box Courier
- Country of origin: Canada

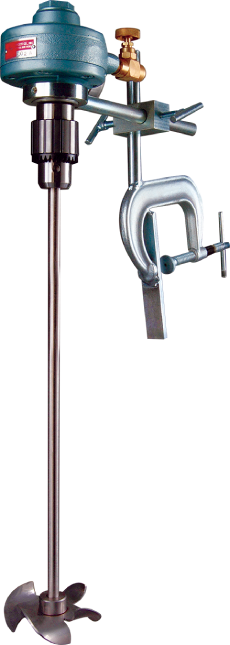

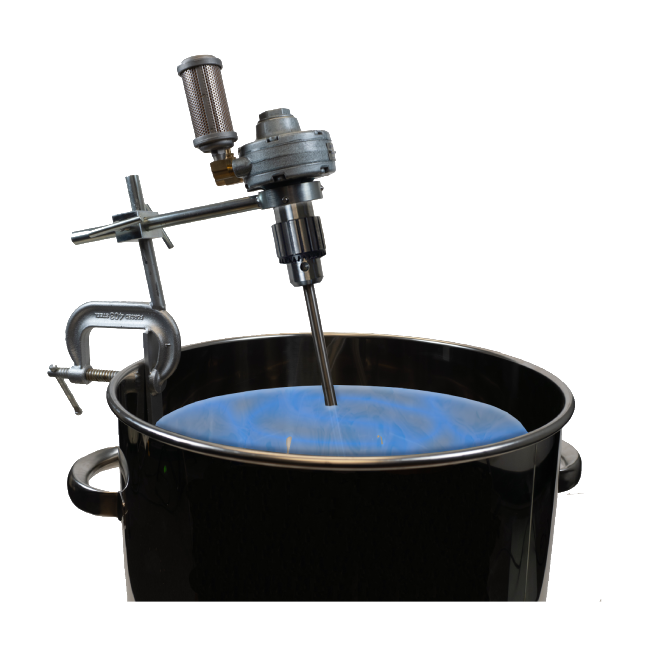

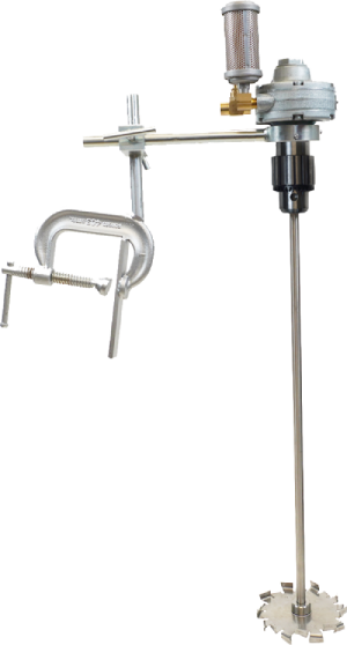

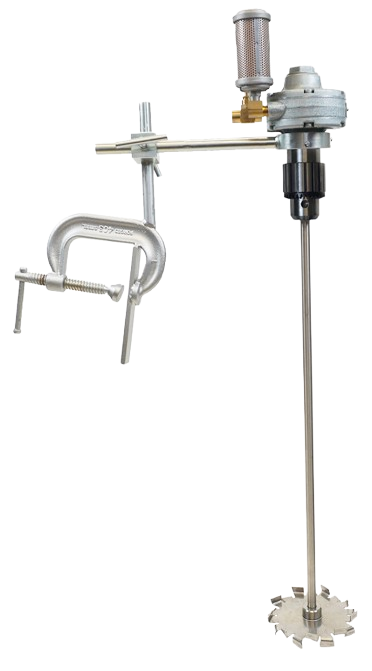

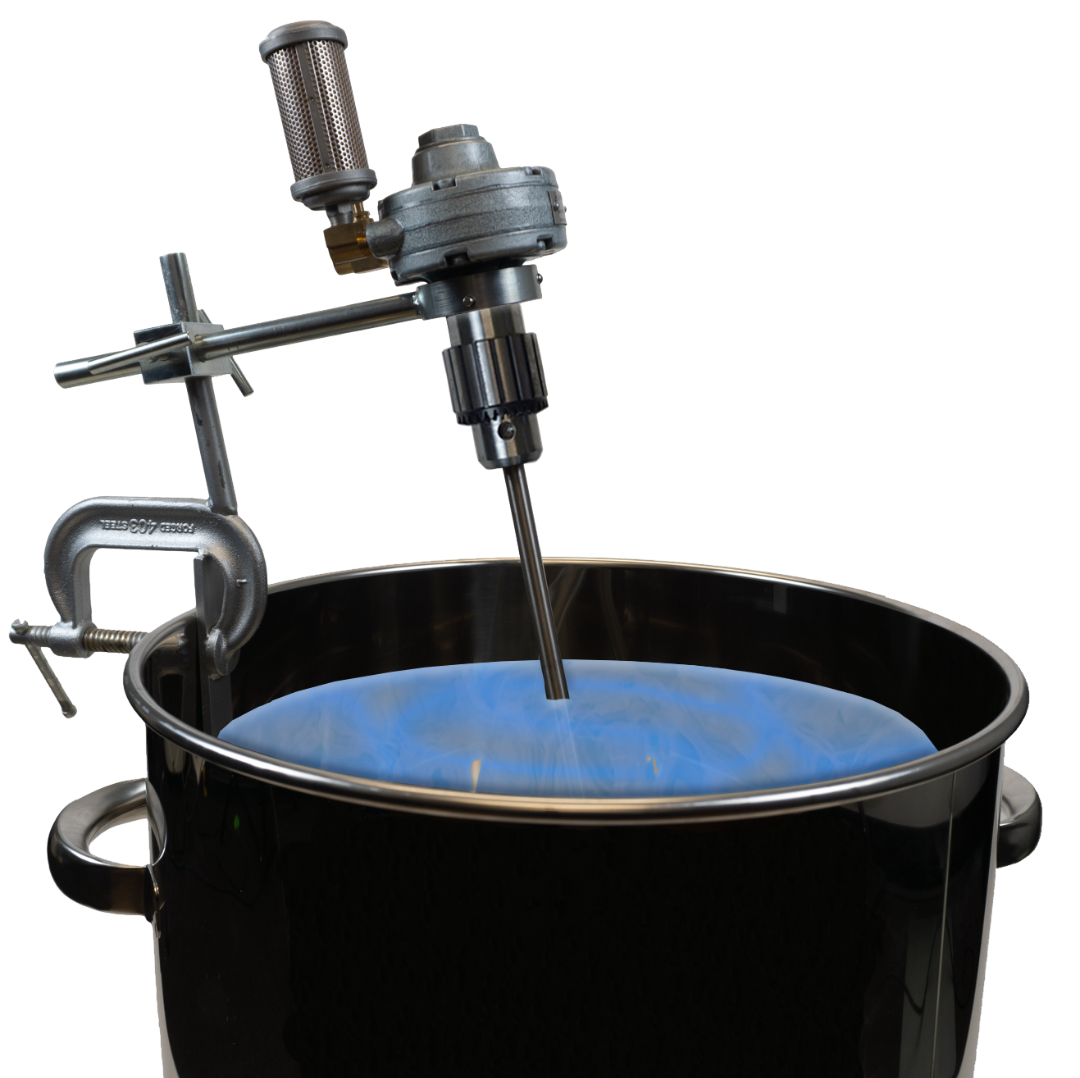

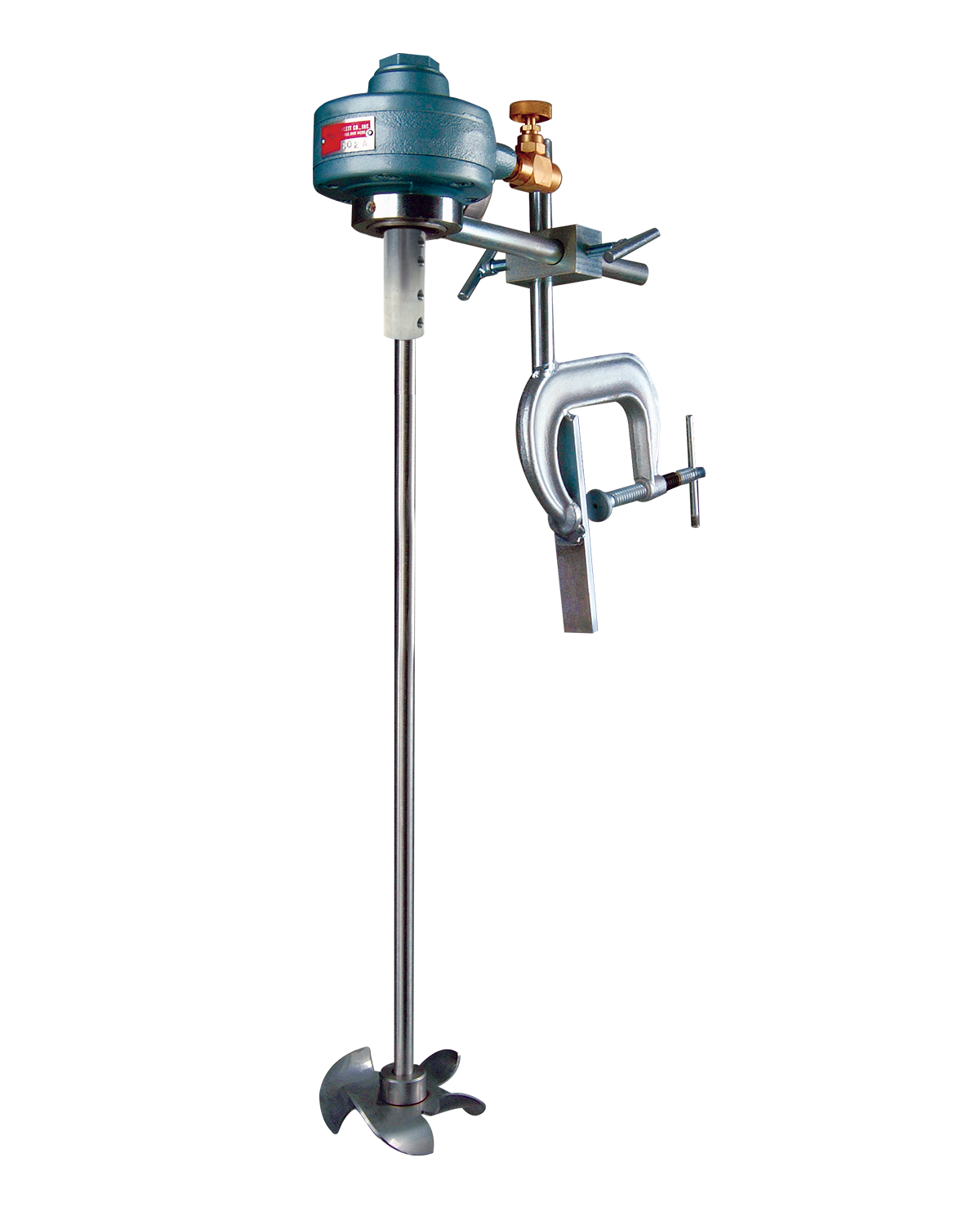

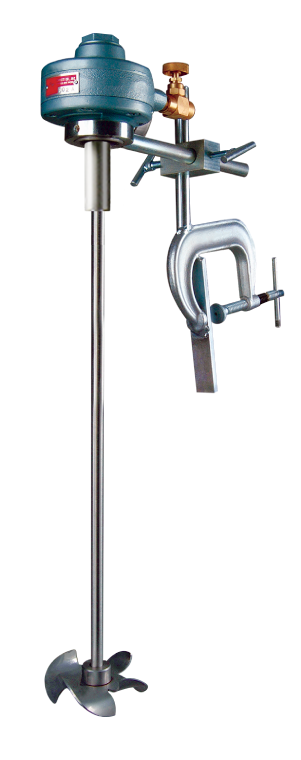

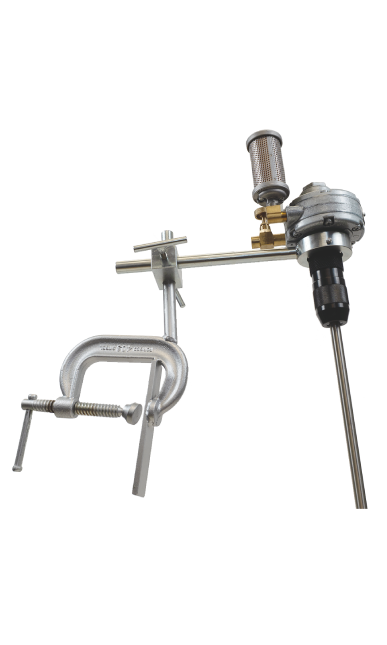

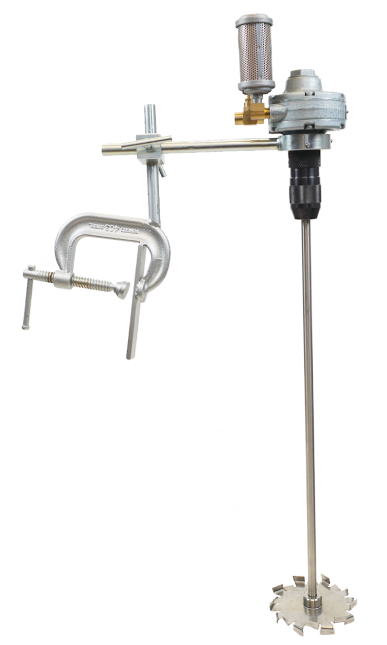

CL Series
Clamp Mount Mixers

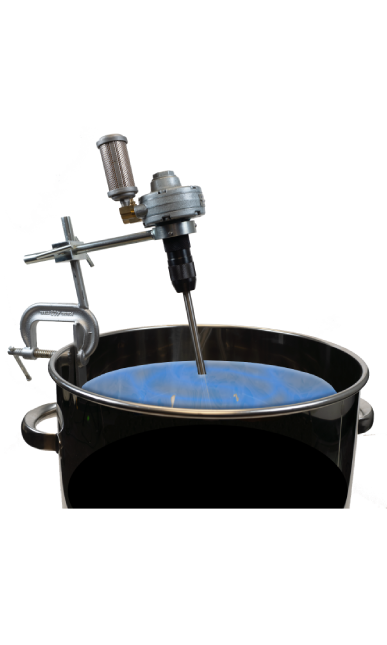

Designed for use on 5-10 gallon open pails & containers, The CL- Clamp Mount Series features multiple axis adjustments for versatile all-angle agitation.
Features:
- Direct drive air motor
- Drop forged c-clamp with non-corrosive plating
- Other shaft sizes and impellers available as special order
- All wetted parts are 304 stainless steel
- Noise dampening exhaust muffler
- Variable speed control valve
- Powerheads come with sleeve couplings
Upgrades & Options
- Lube Free Air Motors
- Mechanical Dial Tachometers
- Keyed or Keyless Chuck

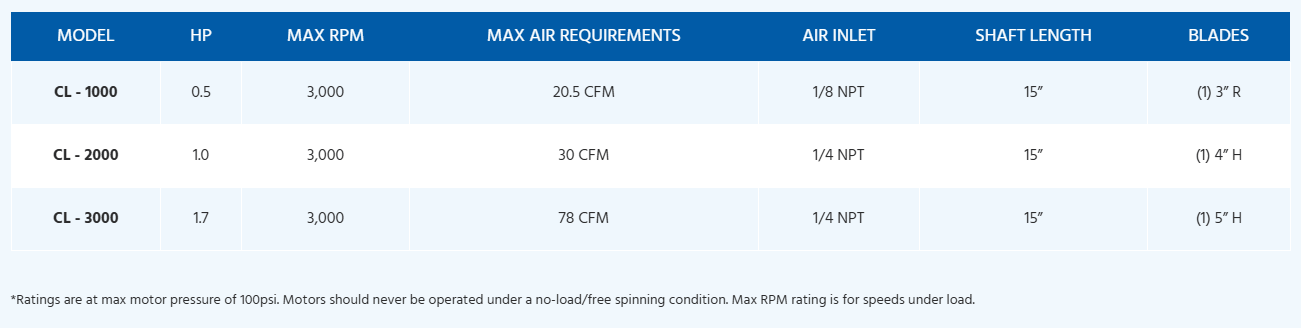

| Model | HP | Max RPM | Max Air Requirements | Air Inlet | Shaft Length | Blades |
|---|---|---|---|---|---|---|
| CL - 1000 | 0.5 | 3,000 | 20.5 CFM | 1/8 NPT | 15” | (1) 3” R |
| CL - 2000 | 1.0 | 3,000 | 30 CFM | 1/4 NPT | 15” | (1) 4” H |
| CL - 3000 | 1.7 | 3,000 | 78 CFM | 1/4 NPT | 15” | (1) 5” H |
*Ratings are at max motor pressure of 100psi. Motors should never be operated under a no-load/free spinning condition. Max RPM rating is for speeds under load.

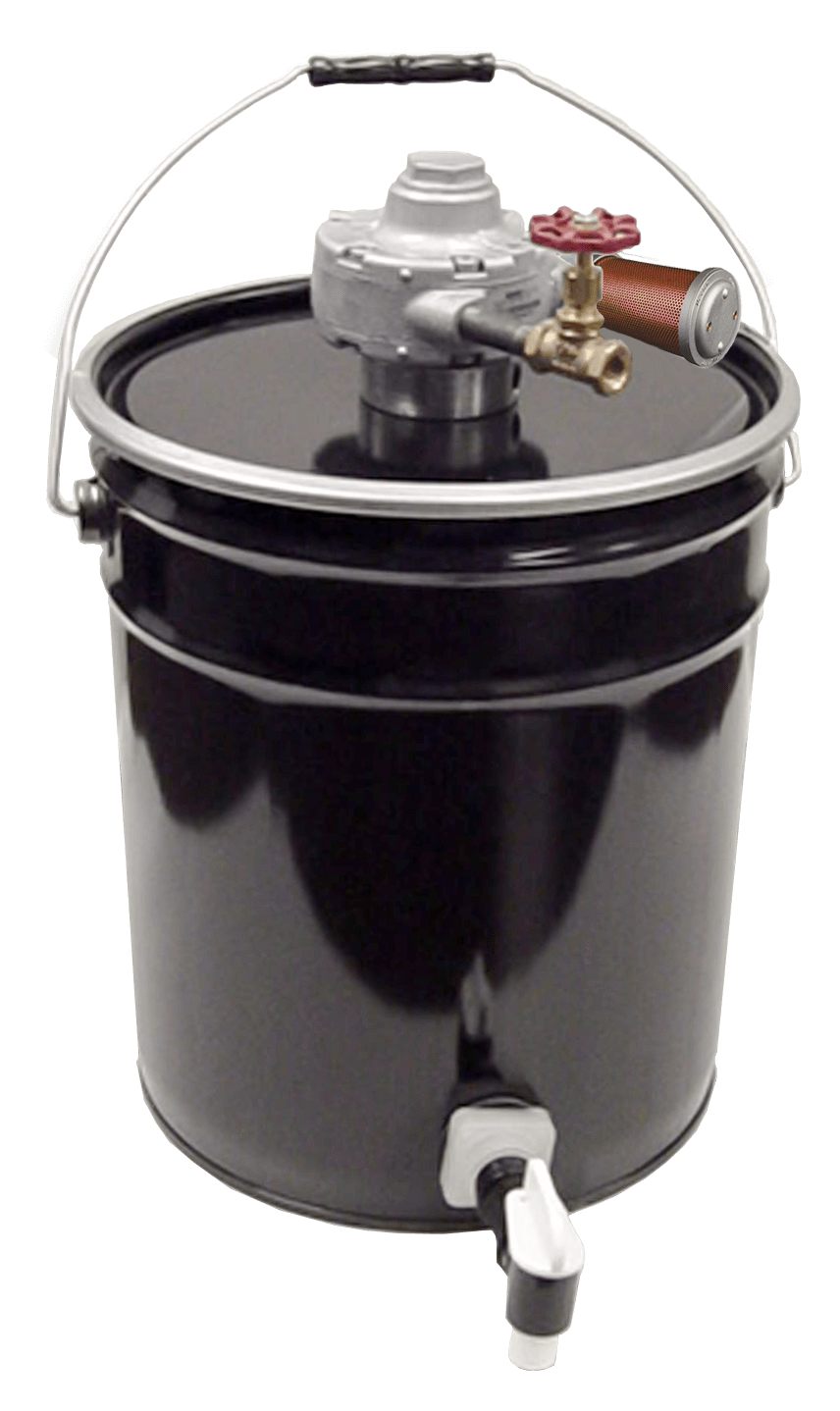

FLM Series Mount Mixers
Five-gallon lid mount (FLM) Series Mixers are integrated into the lid of a 5-gallon bucket or pail. They are portable, lightweight, and easy to use solutions for mixing a variety of materials
** Ordered as a complete system with pail, or as a Lid Only (LD) version to mount on your existing pails **
Features:
- 5 Gallon painted steel pail with rust inhibitor interior
- Pour spout included on pail standard
- Air motors are explosion-proof and lightweight
- Variable speed valve
- Noise dampening muffler
- 5” MixedFLOW™ Impeller included
- All wetted parts in 304 stainless steel
Contact us for customizations or special material compatibality requests!
| Model | HP | Max RPM | Max Air Requirements | Air Inlet | Viscosity Range | Shaft Sizes |
|---|---|---|---|---|---|---|
| FLM - 1 | 1.0 | 3,000 | 30 CFM | 1/4 NPT | Low | 9" x 1/2" |
| FLM - 1/LD (Less Pail) | 1.0 | 3,000 | 30 CFM | 1/4 NPT | Low | 9" x 1/2" |
| FLM - 1.7 | 1.7 | 3,000 | 72 CFM | 1/4 NPT | Medium Low | 9" x 1/2" |
| FLM - 1.7/LD (Less Pail) | 1.7 | 3,000 | 72 CFM | 1/4 NPT | Medium Low | 9" x 1/2" |
*Ratings are at max motor speed of 100psi. Motors should never be operated under a no-load / free spinning conditions. Max RPM rating is for speeds under load.
HM Series
Handheld Mixer Kit
Fawcett Approved for Mixing Applications
A rare combination of power, speed, and chuck capacity in a lightweight and ergonomic tool make this a perfectly suited drill for mixing applications. Fawcett’s top pick after researching major pneumatic tool manufacturers.
Mix one gallon and five gallon batches up to 1,000 centipoise.
| MODEL | HM-1HP-P-A/Kit | HM-1HP-P-C/Kit |
|---|---|---|
| HP | 1.0 | 1.0 |
| CHUCK STYLE | Keyed | Keyless |
| CHUCK CAPACITY | 1/2" Diameter | 1/2" Diameter |
| FREE SPEED | 2,600 RPM | 2,600 RPM |
| REVERSIBLE | No | No |
| WEIGHT | 2.9 LBS | 3.15 LBS |
| SHAFT LENGTH | (2) 18" x 3/8" | 18" x 3/8", 18" x 1/2" |
| SIDE TO CENTER | 0.8" | 0.8" |
| MAX AIR CONSUMPTION | 30 CFM | 30 CFM |
| SOUND LEVEL | 80 dB(A) | 80 dB(A) |
| AIR INLET SIZE | 1/4 NPT | 1/4 NPT |
Comes with a 3" and 4" MixedFLOW™ Impellers
Air Inlet Flow Control With Swivel
Regulate the air flow to limit tool speed and give better control over mixing. Allows the air hose to rotate 360° on 2 axes.
Drill Support Handle
Improve stability and operator comfort during operation. Attaches easily to signature series pistol grip drills.
| PART # | DESCRIPTION |
|---|---|
| HMV-1 | 1/4 NPT regulated air swivel connector with safety pin |
| PART # | DESCRIPTION |
|---|---|
| HM-P-HANDLE | Additional Support Handle for Pistol Grip Drill |
