Powerheads

Fawcett powerhead assemblies contain all the necessary working components for a mixer. An air motor, a speed control valve, an exhaust muffler, an output coupling/chuck, and one of our mounting interfaces. Fawcetts high performing, pneumatic air motors deliver critical operation for explosion-proof environments. Requires minimal maintenance and cannot be damaged by overloading.

Model suffix denotes attachment.
A: Keyed Chuck, B: Coupling, C: Keyless Chuck

MODEL HP MAX RPM MAX CFM AIR INLET OUTPUT
LS-101A0.510,000211⁄8 NPTUp to 3/8"
LS-101B0.510,000211⁄8 NPTUp to 3/8"
LS-102A1.03,000301/4 NPTUp to 1/2"
LS-102B1.03,000301/4 NPTUp to 1/2"
LS-102C1.03,000301/4 NPT-
LS-103A1.73,000721/4 NPTUp to 1/2"
LS-103B1.73,000721/4 NPTUp to 1/2"
LS-103C1.73,000721/4 NPT-
LS-104A4.03,0001281/2 NPTUp to 1/2"
LS-104B4.03,0001281/2 NPTUp to 5/8"
LS-105B5.02,5001281/2 NPTUp to 3/4"

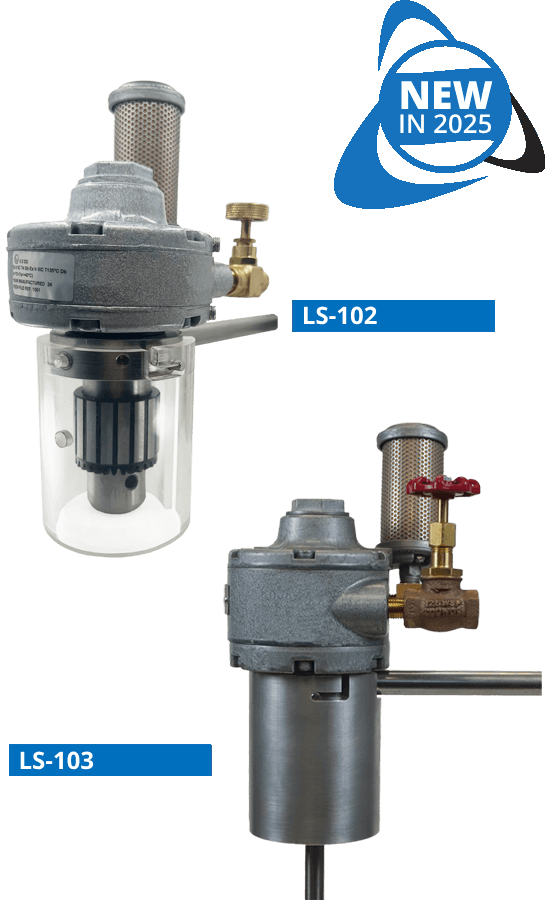

Powerhead Shaft Guards are compatible with Fawcett LS-102 and LS-103 Powerheads

Features:

  • Tool-free attachment for quick and easy operation

  • Locks in place to prevent accidental detachment

  • Easy to clean

  • Available in 4" or 6" lengths

  • No distortion of laser tachometer functions - (Clearance hole for laser tachometer use if guard becomes dirty)

  • 1/4" thick clear acrylic designed to withstand harsh environments.

Shaft Guards are available

GUARD-(1)_SVvYSBFniCg08rpAemRAndvTJQ9SsPMk

Acrylic

4" PN: 02/03G4
6" PN: 02/03G6

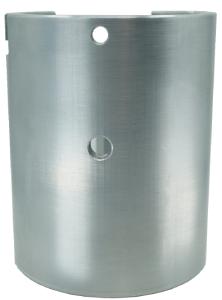

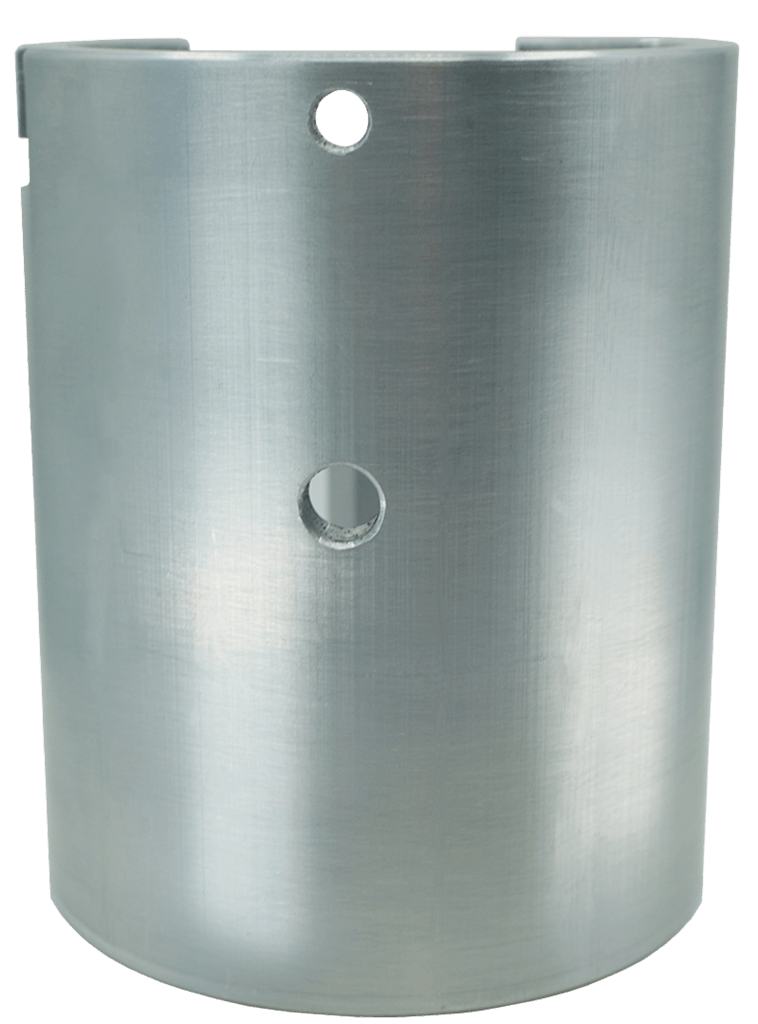

aluminum-shaft-3

Aluminum

4" PN: 02/03G4-AL
6" PN: 02/03G6-AL

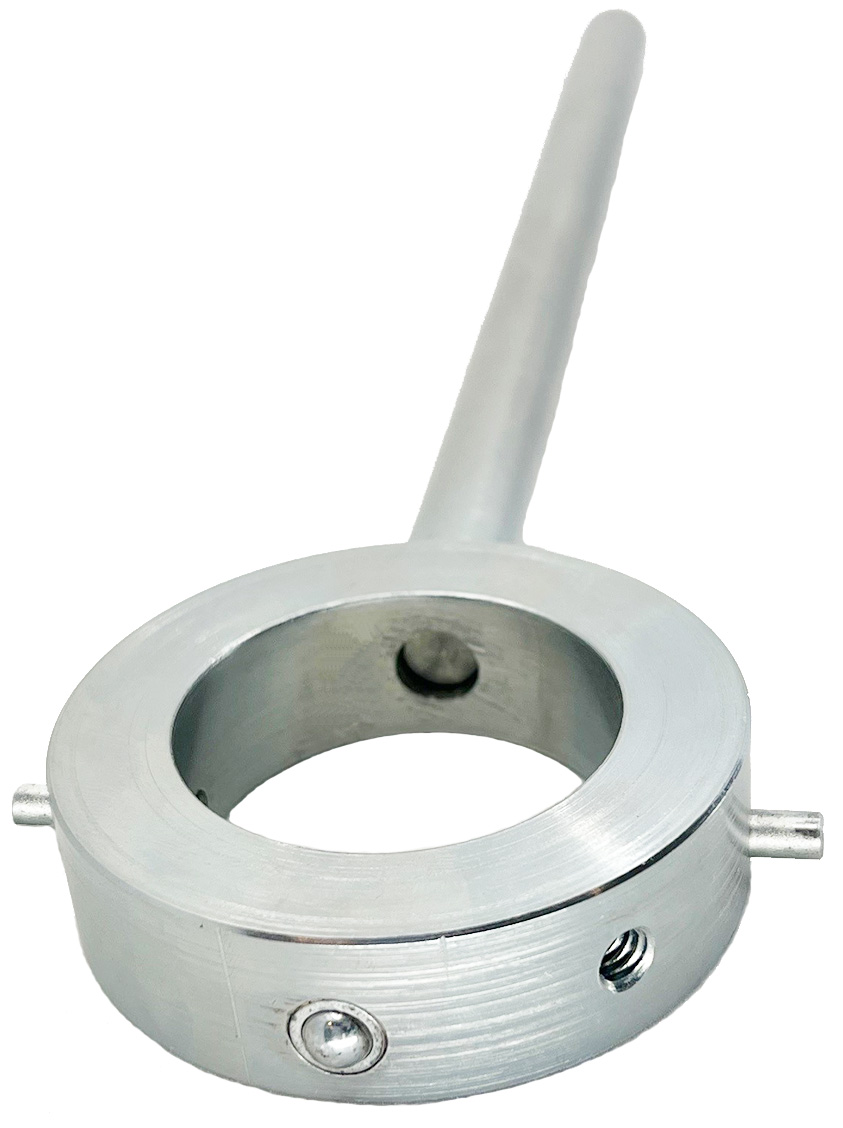

Rod-Ring-Front-Finished_kQBa42oA3th4lqNLbb72n5hr8GElbs1E (1)

02/03SGR

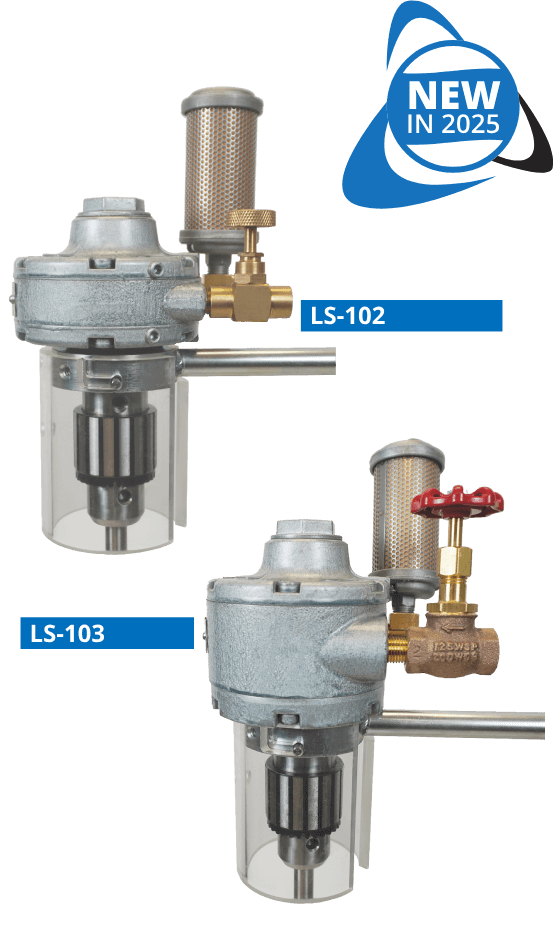

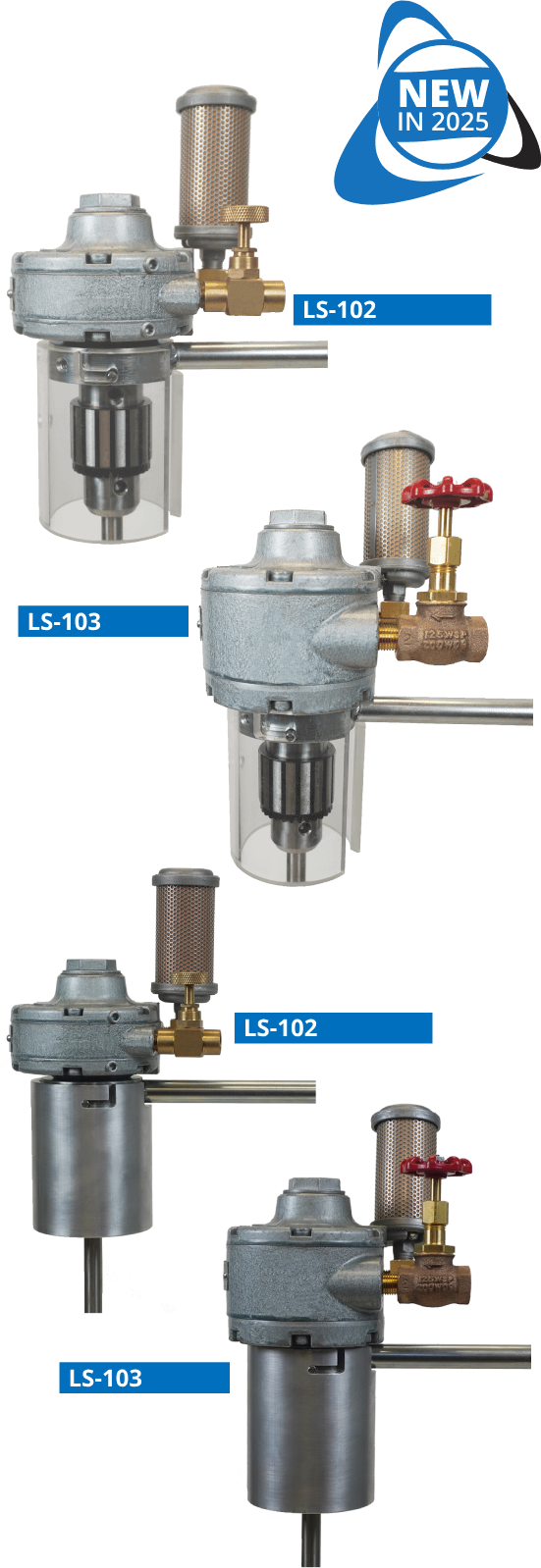

New rod ring assemblies can retrofit to existing LS-102 and LS-103 powerheads.

Beginning in 2025, all units that utilize 102 and 103 powerheads will have the new style rod ring that is compatible with the shaft guard (sold seperately).

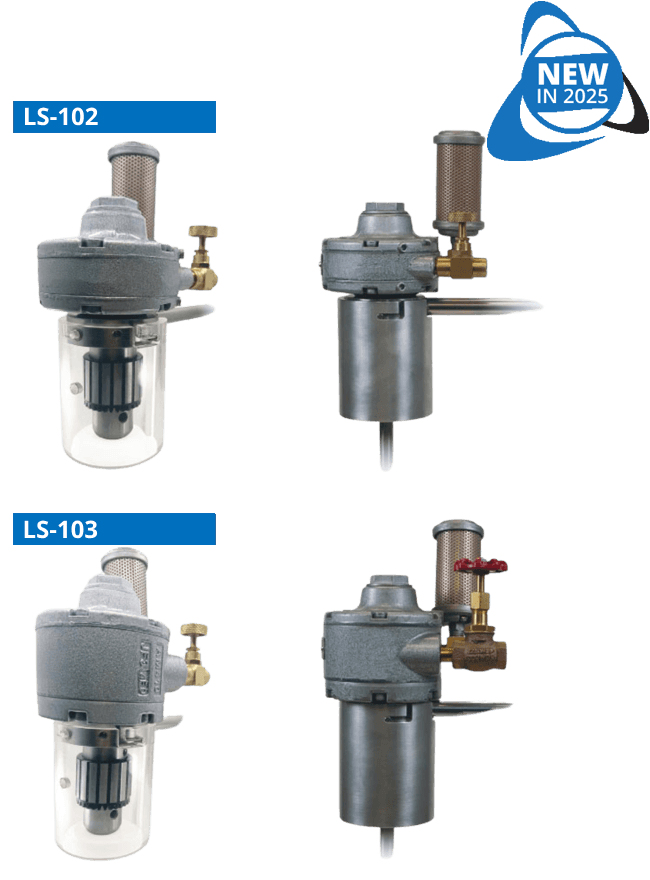

Shaft-Guard-Group

Arcrylic

4" PN: SGKIT4
6" PN: SGKIT6

Aluminum

4" PN: SGKIT4-AL
6" PN: SGKIT6-AL

Mufflers

Reduces excessive exhaust noise. Improves motor performance. Helps meet important safety standards.

AirMufflers
MODEL SIZE DESCRIPTION
M-021/4 NPT

Exhaust Air Muffler with 1/4 NPT Male thread; Includes Brass Adapter

M-071/2 NPT

Exhaust Air Muffler with 3/4 NPT Male thread; Includes Female Reducing
Fitting for Motor Attachment [3/4 NPT x 1/2 NPT]

Tachometer

Tachometers are factory installed upgrades available on new equipment. Retrofit service is also available for used motors in good condition. Inquire with us for retrofits. Kit includes: Tachometer, Motor End Cap replacement, Internal Shaft Adapter.

+/- 1% accuracy (of max indicated speed). Safe for explosion proof environment with internal grounding.
MODEL DESCRIPTION Motor Capacity
TK-2/3

Tachometer Upgrade Kit

20A, 30A

TK-4

Tachometer Upgrade Kit for 104 Motor

40A

Chucks

Mounts on specific motor shaft with set screw.

Adjustable
Item No DESCRIPTION
01J

Keyed Chuck; 3/8" Capacity; Mounts to 3/8" Dia. Motor Output Shaft; *Uses CK-3/8 Chuck Key*

03J

Keyed Chuck; 1/2" Capacity; Mounts to 1/2" Dia. Motor Output Shaft; *Uses CK-1/2 Chuck Key*

04J

Keyed Chuck; 1/2" Capacity; Mounts to 5/8" Dia. Motor Output Shaft; *Uses CK-1/2 Chuck Key*

CK-1/2

Key for 03J [1/2" Capacity] Chuck

CK-3/8

Key for 01J [3/8" Capacity] Chuck

Keyless Chucks Available

Couplings

Used when attaching shafts to motors or gearboxes. Comes with set screws and hex key wrench.

Couplings
MODEL SIZE DESCRIPTION
01S5⁄16
"

Brass Sleeve Coupling

03S1/2"

Stainless Steel Sleeve Coupling

04S5⁄8"

Stainless Steel Sleeve
Coupling

05S3/4"

Stainless Steel Sleeve Coupling

Step Couplings are available upon request.

Valves

We use high quality brass valves.

Air-Valves
MODEL SIZE DESCRIPTION
01V1⁄8 NPT

Brass Needle Valve, MxF

02V1/4 NPT

Brass Needle Valve, FxF (w/ brass close nipple)

03V1/4 NPT

Gate Valve

04/05V1/4 NPT

Brass Ball Valve, FxF (w/ galvanized 3" nipple)

Rod Mounts

These mounts attach to our air motors and combined with the proper Fawcett clamp block comprise a simple and effective mounting system for stands and portable clamp mixers.

02/03SGR
02/03SGR
01R
01R
MODEL POWERHEAD DESCRIPTION
01R101

Rod Mount Assembly: 1/2" Rod Dia; Fits 10A-HUB
Motor; Zinc Plated; (w/ set screw)

02/03SGR102/103

Rod Mount Assembly; 1/2" Rod Dia; Fits 20A-HUB &
30A- HUB motor; Zinc Plated; (w/ fasteners)

04R104

Rod Mount Assembly; 3/4" Rod Dia; Fits 40A-Foot Motor; Zinc Plated (w/Fasteners)

05R105

Rod Mount Assembly: 3/4" Rod Dia; Fits 50A-FOOT Motor; Zinc Plated; (w/ fasteners)

Clamp Blocks

Attaches motor rod mount to support stands or clamps. (Two zinc plated T-Handles included)

L-4 copy
MODEL SIZE DESCRIPTION
L-11/2" x 1/2" Bore

Basic Clamp Block Assembly, Zinc Plated (includes two T-Handles)

L-1P1/2" x 5⁄8" Bore

Basic Clamp Block Assembly, Zinc Plated (includes two T-Handles)

L-25⁄8" x 5⁄8" Bore

Basic Clamp Block Assembly, Zinc Plated (includes two T-Handles)

L-3P3/4" x 1/2" Bore

Basic Clamp Block Assembly, Zinc Plated (includes two T-Handles)

L-45⁄8" x 3/4" Bore

Basic Clamp Block Assembly, Zinc Plated (includes two T-Handles)

L-63/4" x 3/4" Bore

Basic Clamp Block Assembly, Zinc Plated (includes two T-Handles)

L-83/4" x 3/4" Bore

Basic Clamp Block Assembly, Zinc Plated

TH-1-

T Handle for Basic Block Clamp, Zinc Plated

Lab Stands

All plates are heavy duty, zinc plated steel for corrosion resistance.

MODEL DESCRIPTION
AX-1

Lab Stand; 8"W x 10"D for vessels up to 8" Dia.; Includes 24" Tall x 1/2" Dia. Support Rod; Zinc Plated

AX-23

Lab Stand; 14"W x 16"D for vessels up to 14" Dia.; Includes 34" Tall x 3/4" Dia. Support Rod; Zinc Plated

AX-25

Lab Stand; 14"W x 16"D for vessels up to 14" Dia.; Includes 48" Tall x 3/4" Dia. Support Rod; Zinc Plated

AX-1R

Lab Stand Vertical Support Rod; 24" Tall x 1/2" Dia.; Stainless Steel; w/ Jam Nut

AX-23R


Lab Stand Vertical Support Rod; 34" Tall x 3/4" Dia.; Zinc Plate; w/ Jam Nut

AX-25R

Lab Stand Vertical Support Rod; 48" Tall x 3/4" Dia.; Zinc Plate; w/ Jam Nut

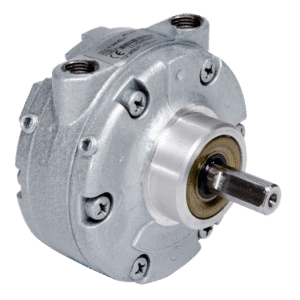

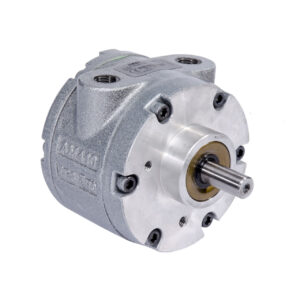

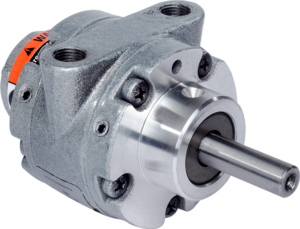

Bare Motors

Standard "Bare" replacement air motors. Does NOT include any mounting hardware, valve, muffler, or other accessories.

plain-moter
MODEL DESCRIPTION
10A-HUB

0.5 HP Air Motor; Hub Mount

[500-10000 RPM, 21 CFM Max, 1/8 NPT Ports, 3/8" Dia. Output Shaft]

20A-HUB


1.0 HP Air Motor; Hub Mount

[300-3000 RPM, 30 CFM Max, 1/4 NPT Ports, 1/2" Dia. Output Shaft]

30A-HUB


1.7 HP Air Motor; Hub Mount

[300-3000 RPM, 72 CFM Max, 1/4 NPT Ports, 1/2" Dia. Output Shaft]

30A-NEMA

1.7 HP Air Motor; 56C NEMA Flange Mount

[300-3000 RPM, 72 CFM Max, 1/4 NPT Ports, 5/8" Dia. Output Shaft]

40A-FACE

4.0 HP Air Motor; Face Mount

[300-3000 RPM, 128 CFM Max, 1/2 NPT Ports, 5/8" Dia. Output Shaft]

40A-FOOT

4.0 HP Air Motor; Foot Mount
[300-3000 RPM, 128 CFM Max, 1/2 NPT Ports, 5/8" Dia. Output Shaft]

40A-NEMA

4.0 HP Air Motor; 56C NEMA Flange Mount

[300-3000 RPM, 128 CFM Max, 1/2 NPT Ports, 5/8" Dia. Output Shaft]

50A-FOOT


5.0 HP Air Motor; Foot Mount

[400-2500 RPM, 175 CFM Max, 1/2 NPT Ports, 3/4" Dia. Output Shaft]

50A-NEMA


5.0 HP Air Motor; 145TC NEMA Flange Mount

[400-2500 RPM, 175 CFM Max, 1/2 NPT Ports, 7/8" Dia. Output Shaft]

Clamp Mounts

Attaches stirrer motor to the side of mixing container. Clear zinc plated for long life.

dr-clamp
MODEL DESCRIPTION
DR-7


C-Clamp Pail Mount; 3" Max Opening; 5/8" Mixer Mounting Rod; Zinc Plated; *Connects to powerhead via clamp block [both sold separately] *

DR-8/9

Single C-Clamp Mount; 4" Max Opening; 3/4" Mixer Mounting Rod; Zinc Plated; *Connects to powerhead
via clamp block [both sold separately] *

DR-10

Dual C-Clamp Mount; 4" Max Opening; 3/4" Mixer Mounting Rod; Zinc Plated; *Connects to powerhead
via clamp block [both sold separately] *

*Clamp Blocks sold separately

Grounding Clamps

FM Approved Ground Clamp

R2GroundClamp (1)
MODEL SIZE DESCRIPTION
GC/TA-31/8" Diameter with 3' long

Stainless Steel Cable; Cast aluminum hand clamp w/ opposing
hardened stainless steel points for strong biting force; 1/4" lug opposite end

Container Holders

Complete with L-4 Clamp Block

Container_Holder
MODEL DESCRIPTION
CH-1-C

1 Gallon Size, 15" long

CH-5-C

5 Gallon Size, 33" long

Air Hoses

Features crimped brass swivel fittings and heavy-duty reinforced, non-conductive hose. Contact us for custom lengths.

hose
MODEL DESCRIPTION
AH-4

4' Long 1/4" Dia. Hose with 1/8 NPT Male Fittings

AH-5

5' Long 3/8" Dia. Hose with 1/4 NPT Male Fittings

AH-210

10' Long 1/2" Dia. Hose with 1/2 NPT Male Fittings

Repair Kits for Air Motors

Everything you need to give your air motors new life. Kit consists of bearings, gaskets, seals, and vanes (springs and pins if applicable).

Repair Kit
Repair_Kit_AM_Series_Motors
MODEL DESCRIPTION
K200

Repair Kit for 10A-HUB; Includes shaft seal, bearings, gasket, and shims

K202

Repair Kit for 20A-HUB; Includes shaft seal, bearings, gaskets, and vanes

K205

Repair Kit for 30A-HUB; Includes shaft seal, bearings, gaskets, vanes, pins, and vane springs

K206A

Repair Kit for 30A-NEMA; Includes shaft seal, bearings, gaskets, vanes, pins, and vane springs

K208

Repair Kit for 40A-FOOT, 40A-FACE, and 40A-NEMA; Includes shaft seal, bearings, gaskets, vanes, pins,
and vane springs

K210

Repair Kit for 50A-FOOT; Includes shaft seal, bearings, gaskets, vanes, pins, and vane springs

K211

Repair Kit for 50A-NEMA; Includes shaft seal, bearings, gaskets, vanes, pins, and vane springs
