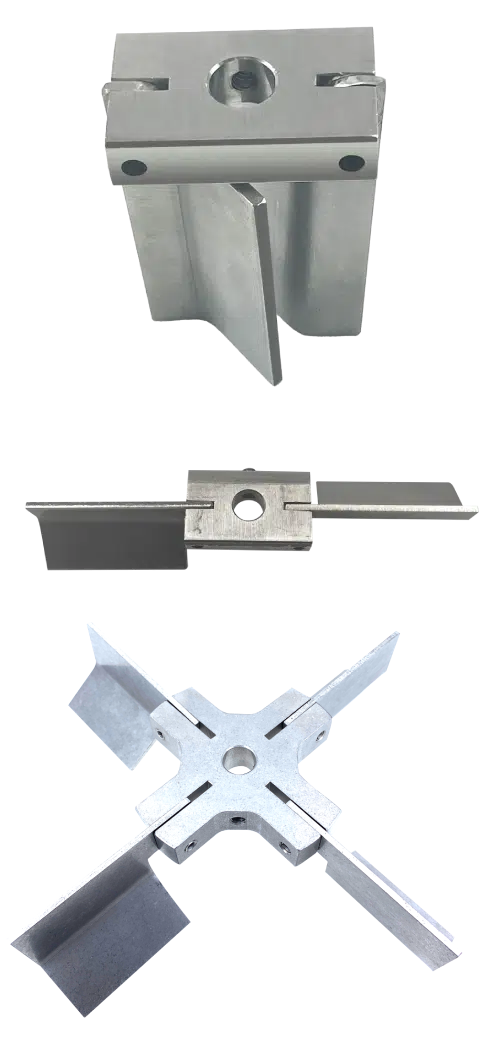

Bung-Entering Folding Impellers
Closed to enter tank or drum, open up when mixing. Mount anywhere along the mixing shaft. Made from 304 Stainless Steel. 4 blade options by request only.
| MODEL | SIZE (OPEN) |
|---|---|
| BHI-4/4 | 4" Dia |
| BHI-4/5 | 4" Dia |
| BHI-7/4 | 7" Dia |
| BHI-7/5 | 7" Dia |
| MODEL | SIZE (OPEN) |
|---|---|
| BHI-10/5-2 | 10" Dia |
| BHI-10/6-2 | 10" Dia |
| BHI-10/8-2 | 10" Dia |
| BHI-12/5-2 | 12" Dia |
| BHI-12/6-2 | 12" Dia |
| BHI-12/8-2 | 12" Dia |
| BHI-14/5-2 | 14" Dia |
| BHI-14/6-2 | 14" Dia |
| BHI-16/8-2 | 14" Dia |
Paddle Shafts
304 Stainless Steel Construction
| MODEL | SIZE | CLEARANCE |
|---|---|---|
| PS-3x22 | 3" Blade, 5/16" x 22" Shaft | 3" Open, 1" Closed |
| PS-4x22 | 4" Blade, 5/16" x 22" Shaft | 4" Open, 1" Closed |

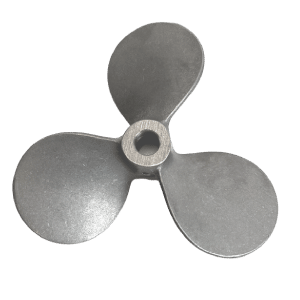

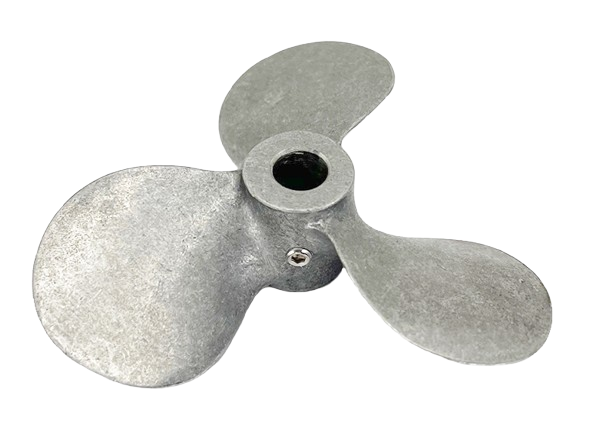

Propellers
Cast propellers made from 316 Steel.
| MODEL | DIAMETER | BORE |
|---|---|---|
| MF - 32P | 3" | 3/8" |
| MF - 33P | 3" | 1/2" |
| MF - 43P | 4" | 1/2" |
| MF - 44P | 4" | 5/8" |
| MF - 53P | 5" | 1/2" |
| MF - 54P | 5" | 5/8" |
| MF - 63P | 6" | 1/2" |
| MF - 64P | 6" | 5/8" |
| MF - 84P | 8" | 5/8" |
| MF - 85P | 8" | 3/4" |
Axial Flow 4 Blade Turbines
Made from 304 Stainless Steel. Welded construction, 1" Bore include Stainless Steel set screw and hex wrench.
| MODEL | SIZE | BORE |
|---|---|---|
| MF-110T | 10" SS Turbine Blade | 1" |
| MF-120T | 12" SS Turbine Blade | 1" |
| MF-140T | 14" SS Turbine Blade | 1" |
| MF-160T | 16" SS Turbine Blade | 1" |

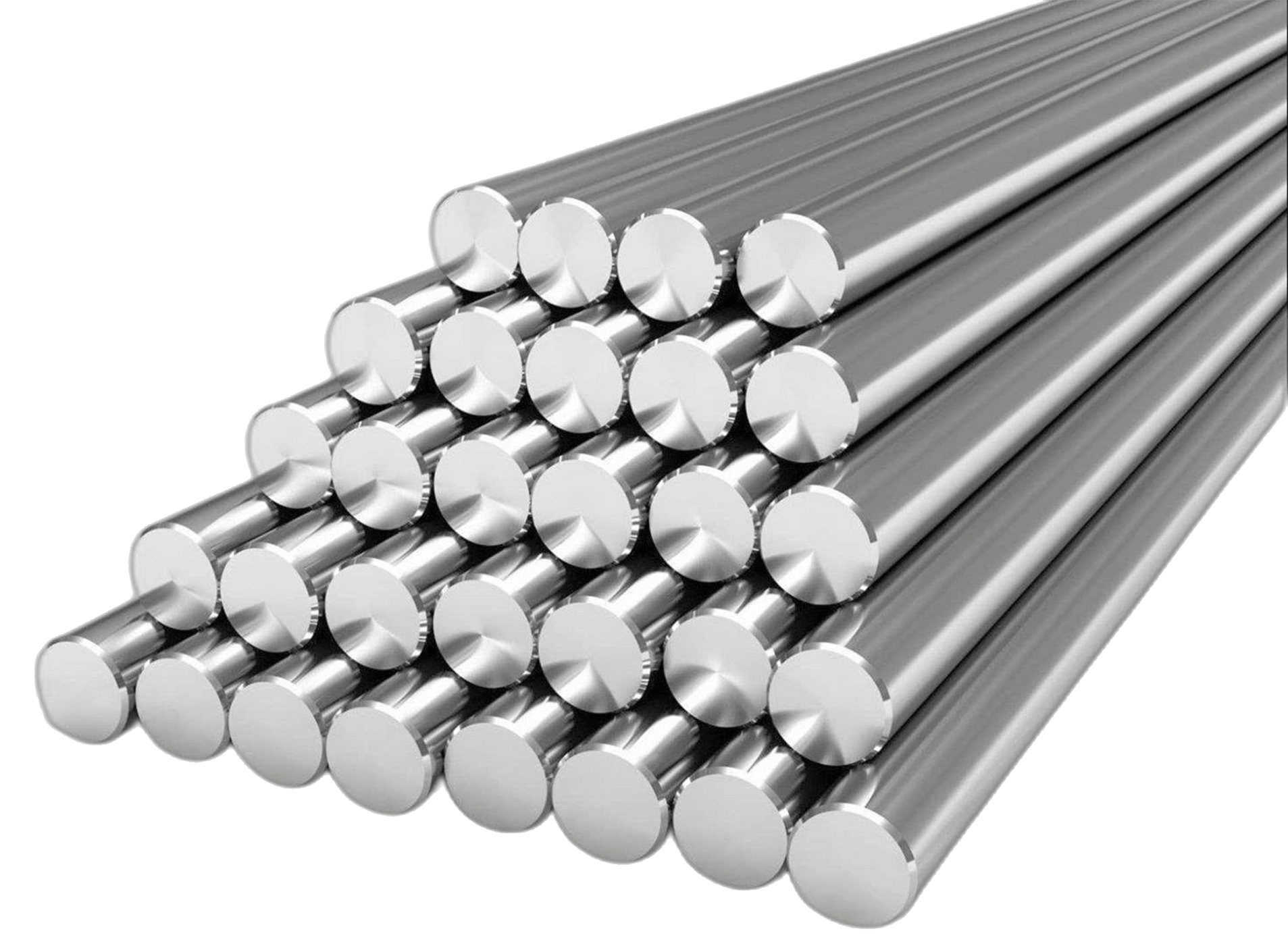

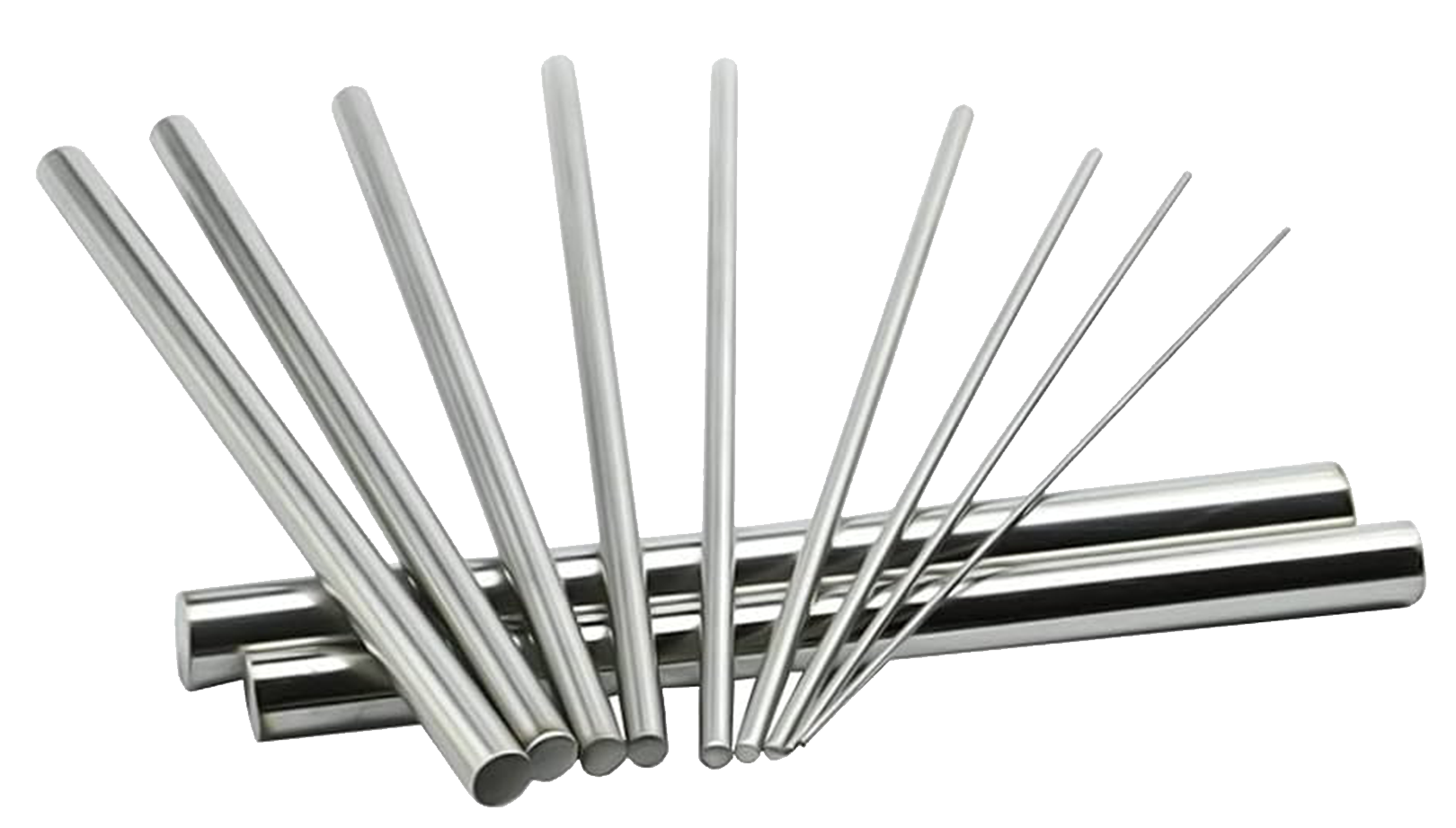

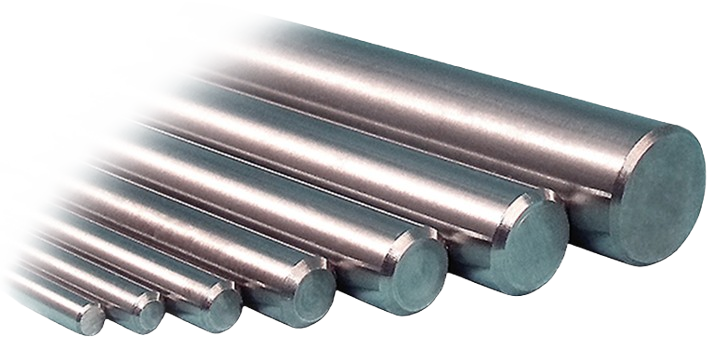

Output Shafts
Made from 303 Stainless Steel. These standard lengths are found on our various mixers. Special order lengths available. Call customer service for a quote.
| MODEL | DIAMETER | LENGTH |
|---|---|---|
| S-9 | 5/16" | 9" |
| S-12 | 5/16" | 12" |
| S-15 | 5/16" | 15" |
| S-18 | 5/16" | 18" |
| S-24 | 5/16" | 24" |
| SA-9 | 3/8” | 9" |
| SA-12 | 3/8” | 12" |
| SA-15 | 3/8” | 15" |
| SA-18 | 3/8” | 18" |
| SA-24 | 24" | 3/8” |
| SB-12 | 1/2” | 12" |
| SB-15 | 1/2” | 15" |
| SB-18 | 1/2” | 18" |
| SB-40 | 1/2” | 40" |
| SC-30-1/2 | 5/8” | 30 1/2" |
| SC-34 | 5/8” | 34" |
| SC-40 | 5/8” | 40" |
| SD-30-1/2 | 3/4” | 30 1/2" |
| SD-34 | 3/4” | 34" |
| SD-40 | 3/4” | 40" |
Wetted parts become integral to your mixers and tanks. Heavy duty stainless steel and corrosion resistant options are available. 1" Diameter shafts available for Trans-Mix units.
Custom Lengths available upon request
