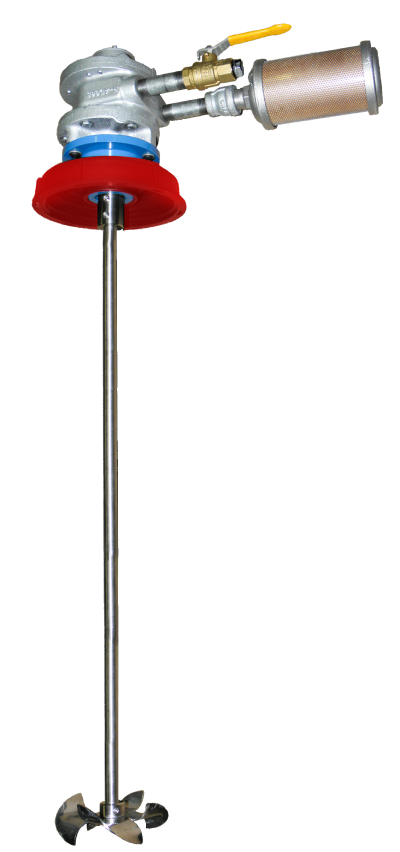

TT Series

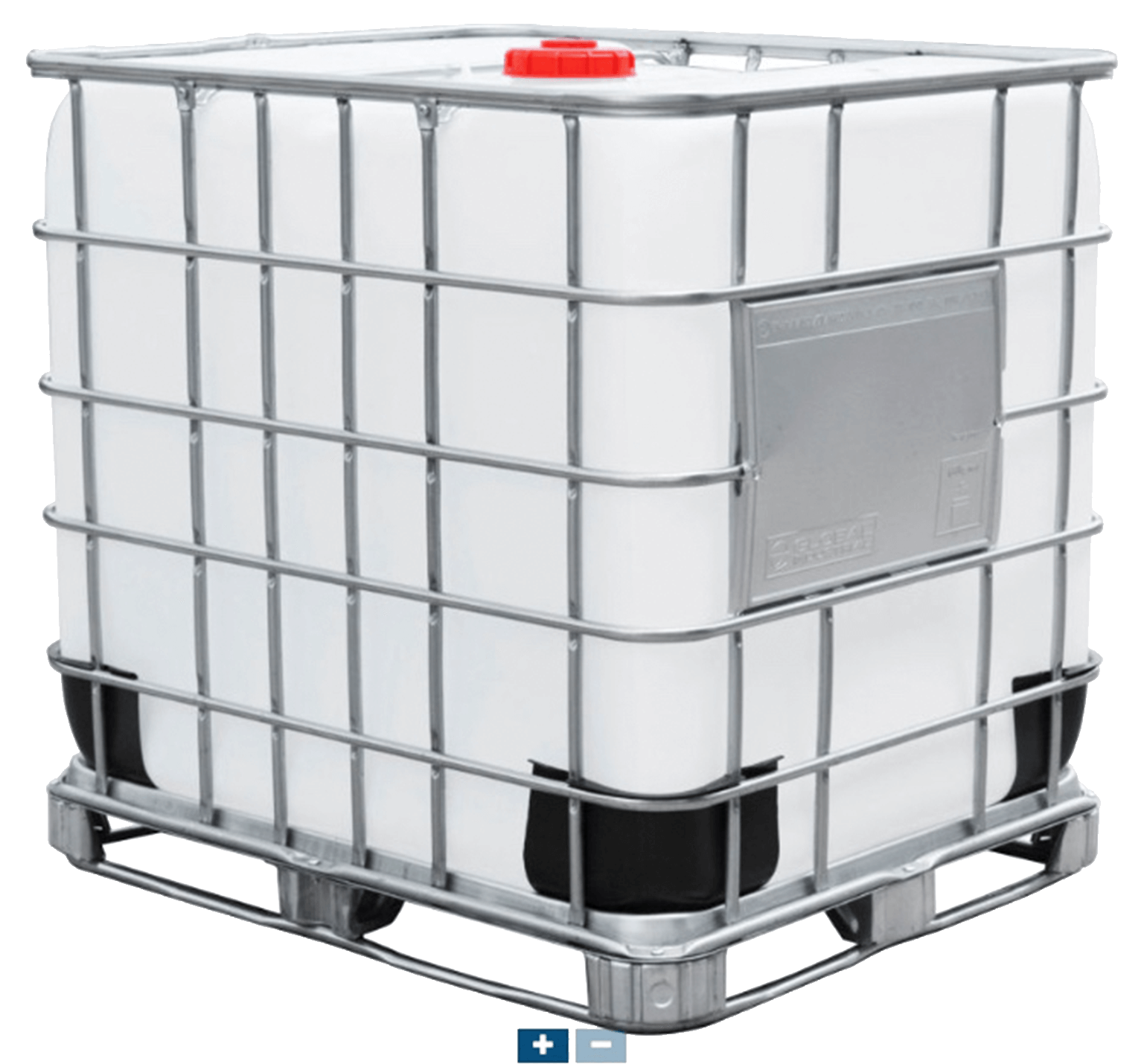

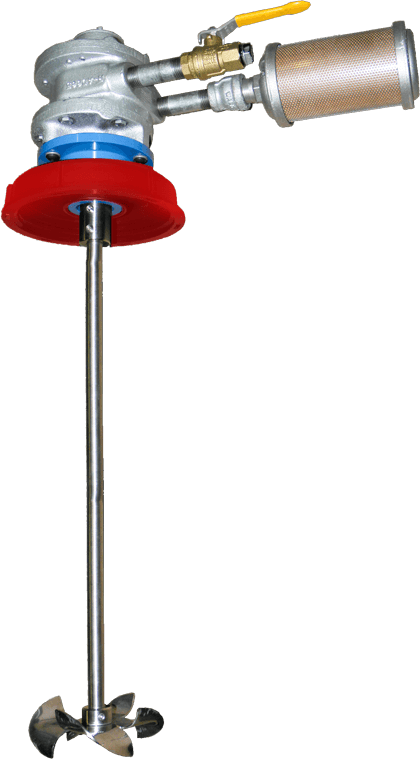

Plastic IBC Tote Mixers
Tote Tank (TT) Series Mixers are lightweight, and easy to handle. They are designed to mix powerfully and conveniently light to medium viscosity solutions using our MixedFLOW™ Impellers. These mixers come with a 6” vented screw cap that will fit on IBC totes.
Features
- Light Weight: Less than 15 lbs
- Easy to mount and move
- Mounted to a 6” Plastic, Vented Lid (9” available as per request)
- All wetted parts in 304 Stainless Steel
- Variable Speed Control Valve
- Noise dampening exhaust muffler
Upgrades & Options
- Lube Free Air Motors
- Mechanical Dial Tachometers
| Models | HP | Max RPM |
Max Air Requirement | Air Inlet | Viscosity | Impellers | Shaft Length |
|---|---|---|---|---|---|---|---|
| TT - 102 | 1.0 | 3,000 | 30 CFM | 1/4 NPT | Low | (1) 4” H | 30" x 1/2" |
| TT - 103 | 1.7 | 3,000 | 72 CFM | 1/4 NPT | Medium Low | (1) 4” H | 30" x 1/2" |

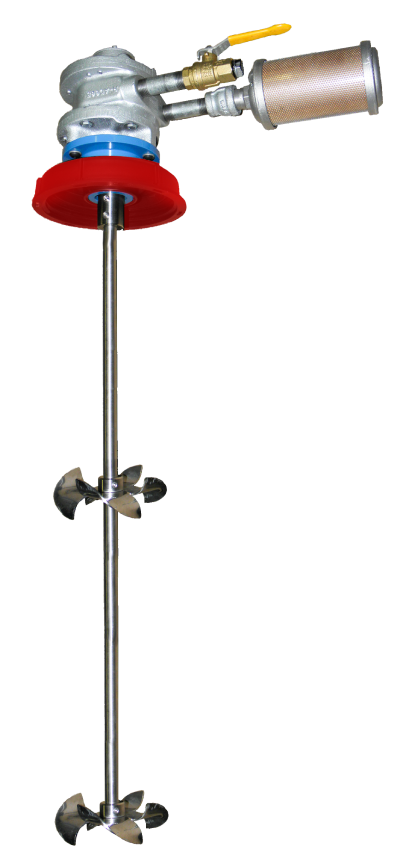

| TT - 103S | 1.7 | 3,000 | 72 CFM | 1/4 NPT | Medium Low | (2) 4” H | 30" x 1/2" |
| TT - 104 | 4.0 | 3,000 | 128 CFM | 1/2 NPT | Medium High | (1) 5” H | 30" x 5/8" |

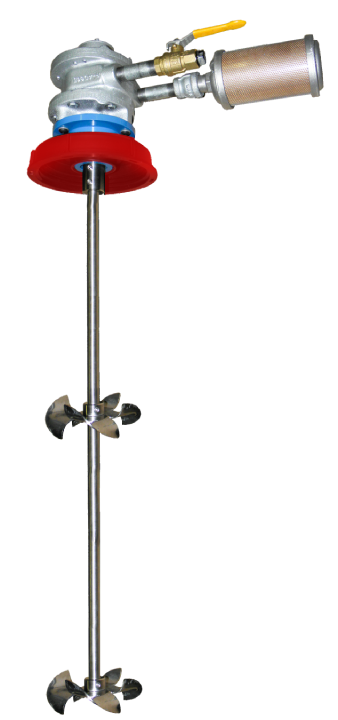

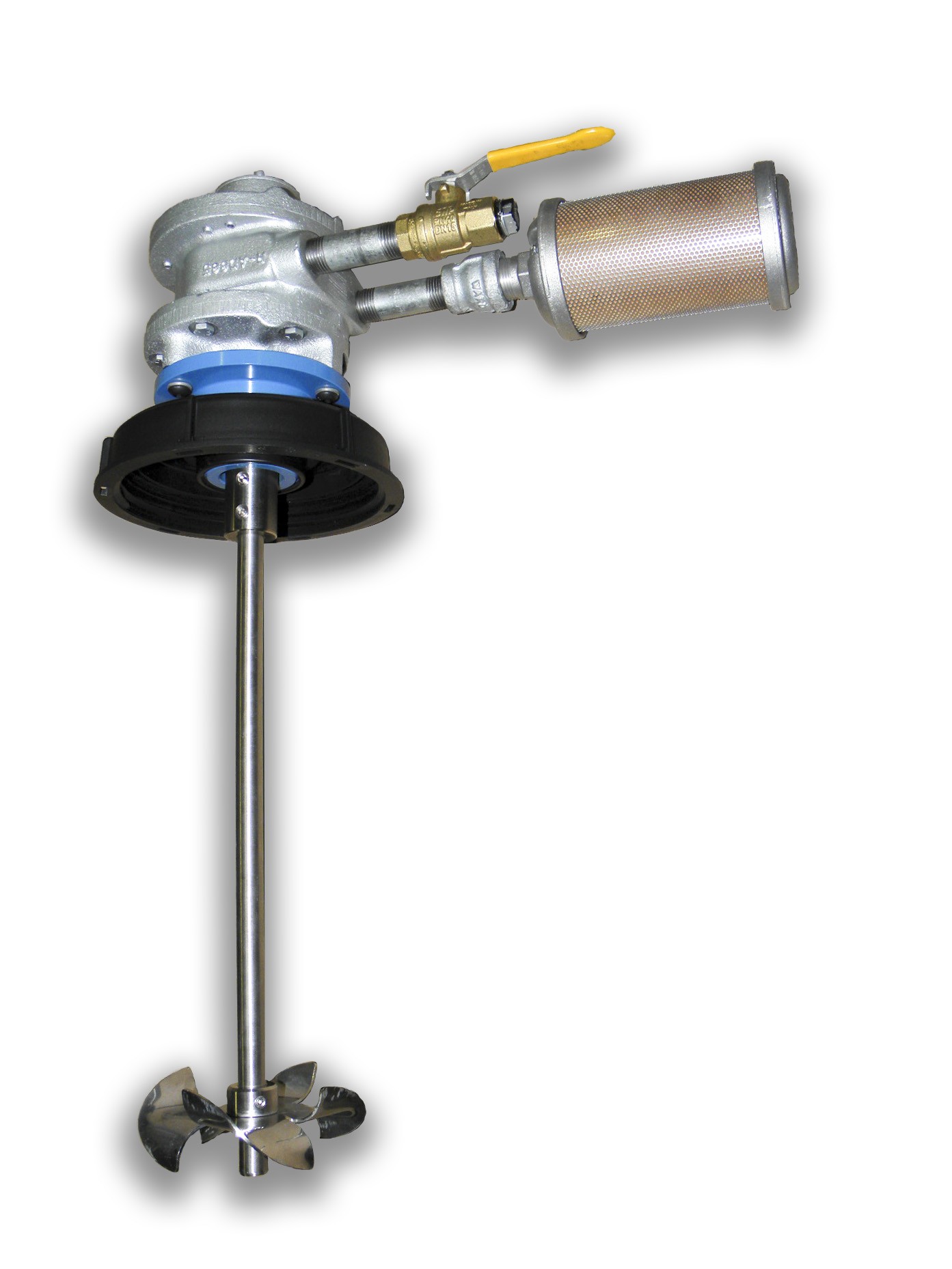

| TT - 104S | 4.0 | 3,000 | 128 CFM | 1/2 NPT | Medium High | (2) 5” H | 30" x 5/8" |
*Ratings are at max motor pressure of 100psi. Motors should never be operated under a no-load/free spinning condition. Max RPM rating is for speeds underload.
Bridge mount models are also available for use on plastic IBC totes. Bridge mount units featuring a larger frame, are able to accommodate geared drive units for slower speed and higher torque output as well as a wide range of electric motors. Call us today for custom bridge mount information and quotes.
Bridge Mount Mixers - For Plastic Caged IBC Totes
PBM Series
Bridge Mount Mixers
Fawcett Bridge Mount Mixers are designed for plastic caged IBC tote tanks. They secure to the caged frame using an adjustable hook. Available in both direct drive configurations for high speed blending or gear reduced configurations for slow speed, high-torque agitation. These units are highly configurable. Contact us for selecting.
Features:
- Available with electric or pneumatic motors
- Direct drive models utilize MixedFLOW™ impellers
- Gear drive models utilize folding impellers that expand as they operate
- All wetted parts are 304 stainless steel
- Noise reducing muffler
- Variable speed control valve
Upgrades & Options
- Optional VFD speed control and explosion proof motors on electric models
- Mechanical Dial Tachometer
- Modified Frame Geometry
- Lube Free Air Motors
| Model Prefix | Description | Available Horsepower | Max RPM | Shaft Size | Impellers Included |
|---|---|---|---|---|---|
| ADDxx PBM | Air Direct Drive | 1.0 - 5.0 | 3,000 | 5/8” or 3/4” | MixedFLOW™ Impellers |
| AGDxx PBM | Air Direct Drive | 1.0 - 5.0 | 600 | 1” | Folding Impellers |
| EDDxx PBM | Electric Direct Drive | 1.0 - 2.0 | 1,800 | 5/8” or 3/4” | MixedFLOW™ Impellers |
| EGDxx PBM | Electric Direct Drive | 1.0 - 2.0 | 360 | 1” | Folding Impellers |
Please contact us to learn about the available lid mounted models
Plastic Tote Bridge only
Adjustable mounting bracket. Bolt Pattern compatible with 56C and 145TC NEMA flange motors and gear boxes.
| MODEL | DESCRIPTION |
|---|---|
| BM-P | Fits caged bulk tanks from 34" to 48" wide |
Steel IBC Tote Mixers
SPM Series
Plate Lid Mount Mixers
Fawcett Plate Mount Mixers are designed for steel IBC tote tanks. They mount directly to the 3” center of an eyebrow style cover. Available in both direct drive configurations * for high speed blending or gear reduced configurations * for slow speed, high-torque agitation. These units are highly configurable. Contact us for assistance.
Features:
- All wetted parts are 304 stainless steel
- Available in electric and pneumatic
- Direct drive models utilize MixedFLOW™ Impellers
- Gear drive models utilize Pitched Blade Axial Turbines
- Leveling screws stablize mounting plate on drum cover
Upgrades & Options
- Lube Free Air Motors
- Mechanical Dial Tachometers
- Stainless steel mount and hardware are optional
- Vertical lifting lugs
- Optional VFD speed control and explosion proof motors on electric models
| Style | Available Horsepower | Max RPM | Shaft Size | Size |
|---|---|---|---|---|
| ADDxx PM xx/xx | 1.0 - 5.0 | 3,000 | 5/8” or 3/4” | MixedFLOW™ Impellers |
| AGDxx PM xx/xx | 1.0 - 5.0 | 600 | 1” | Axial Turbines |
| EDDxx PM xx/xx | 1.0 - 5.0 | 1,800 | 5/8” or 3/4” | MixedFLOW™ Impellers |
| EGDxx PM xx/xx | 1.0 - 5.0 | 360 | 1” | Axial Turbines |
*Ratings are at max motor pressure of 100psi. Motors should never be operated under a no-load/free spinning condition. Max RPM rating is for speeds under load
SBM Series Bridge Mount Mixers
SBM Series
Bridge Mount Mixers
This lightweight, robust bridge mount allows for the secure and
efficient attachment of mixing equipment to steel tote containers,
ensuring consistent and thorough blending or agitation of liquids,
powders, or other materials, while maintaining a safe operation.
Crafted from high-quality materials, it offers exceptional durability,
and stability, even when dealing with heavy or challenging mixing
tasks. Available in air or electric and direct-drive (high speed) or
gear-driven (slow speed) variants.
| Model | Description | HP | Max RPM | Shaft Size | Axial Turbine Blade |
|---|---|---|---|---|---|
| ADDxx SBM | Air Direct Drive | 1.0 - 5.0 | 3,000 | 5/8" or 3/4" | MixedFLOW™ |
| AGDxx SBM | Air Direct Drive | 1.0 - 5.0 | 600 | 1" | Folding |
| EDDxx SBM | Electric Direct Drive | 1.0-2.0 | 1,800 | 5/8" or 3/4" | MixedFlow™ |
| EGDxx SBM | Electric Direct Drive | 1.0-2.0 | 360 | 1" | Folding |
