To Our Customers
For half a century, Fawcett has worked together with you to find solutions for mixing applications. We are constantly seeking new ways to improve quality, maximize efficiency, and minimize your safety concerns. We'll do what it takes to help you do your job well. Our line of air and electric driven mixers, as well as MixedFlow Impellers has grown based on your needs and will continue to grow with you.
As you know, no single mixers works for every application, Fawcett's extensive line of mixing equipment is continuing to be developed to suite virtually every need. If there's something we don't have, we want to hear from you.
our mission
Through continuous research, investment in technology and constant communication with our customers, we strive to provide only the highest quality products and services. It's our commitment to never rest in our pursuit of total customer satisfaction.
repair services
Though our equipment is built with maximum durability, repairs are unavoidable. Our highly trained technicians are ready to service your equipment and answer your questions.
LS Series
Air Operated
Fawcett table-top stirrers are adaptable to a wide variety of applications
and batch sizes from small beakers to multi-gallon containers.
These direct drive models provide a wide speed and torque range.
Each lab stirrer kit comes with a powerhead, air hose, and a variety of
stirrer shafts and Fawcett MixedFLOW™ Impellers.
Keyless Chucks Now Available! Keyless Chucks Now Available!
We take pride in our components including our best-in-class output chucks and exhaust mufflers. Our new keyless chuck, like our keyed chuck, was adopted from those used on machine tools. Thier precise rotation extends motor seal and bearing life. The all metal and integral-input design means they are built to last.
Air hose included
| MODEL | POWERHEAD | OUTPUT | HP | MAX RPM | STAND | AIR HOSE | SHAFT | IMPELLERS |
|---|---|---|---|---|---|---|---|---|
| LS - 1000X | LS - 101B | 3/8" Chuck | 0.42 | 10,000 | AX-1 | 1/4" X 4' (1/8" NPT) | (2) 12"x5/16" | MF - 21R, MF - 21R |
| LS - 1000X/A | LS - 101A | 5/16" Coupling | 0.42 | 10,000 | AX-1 | 1/4" X 4' (1/8" NPT) | (2) 12"x5/16" | MF - 21R, MF - 21R |
| LS - 2000X | LS - 102A | 1/2" keyed Chuck | 0.95 | 3,000 | AX-23 | 3/8" x 5' (1/4 NPT) | 12"x5/16",15"x3/8",18"x1/2" | MF-21R,MF-32R,MF-43R |
| LS - 2000X/C | LS - 102C | 1/2" Keyless Chuck | 0.95 | 3,000 | AX-23 | 3/8" x 5' (1/4 NPT) | 12"x5/16",15"x3/8",18"x1/2" | MF-21R,MF-32R,MF-43R |
| LS - 3000X | LS - 103A | 1/2" Keyed Chuck | 1.70 | 3,000 | AX-23 | 3/8" x 5' (1/4 NPT) | 12"x3/8",(x2) 18"x1/2" | MF-32H,MF-43H,MF-53H |
| LS - 3000X/C | LS - 103C | 1/2" Keyless Chuck | 1.70 | 3,000 | AX-23 | 3/8" x 5' (1/4 NPT) | 12"x3/8",(x2) 18"x1/2" | MF-32H,MF-43H,MF-53H |
| LS - 4000X | LS - 104A | 1/2" Keyed Chuck | 4.0 | 3,000 | AX-23 | 1/2" X 10' (1/2" NPT) | (3) 18"x1/2" | MF-43H,MF-53H,MF-63H |
| LS - 4000X/C | LS - 104C | 1/2" Keyless Chuck | 4.0 | 3,000 | AX-23 | 1/2" X 10' (1/2" NPT) | (3) 18"x1/2" | MF-43H,MF-53H,MF-63H |
*Ratings are at max motor pressure of 100psi. Motors should never be operated under a no-load/free spinning condition. Max RPM rating is for speeds under load
LD Series
Lab Dispersers
The LD series is the twin to the LS series that substitutes high shear dispersion blades in the place of the MIXEDFlow Impellers. The effectiveness of dispersion blades is dependent on the tip speed which is a function of the diameter of the blade and the speed of the rotation (RPM).
Keyless Chucks Now Available! Keyless Chucks Now Available!
We take pride in our components including our best-in-class
output chucks and exhaust mufflers. Our new keyless chuck, like
our keyed chuck, was adopted from those used on machine tools.
Thier precise rotation extends motor seal and bearing life. The all
metal and integral-input design means they are built to last.
Air hose included
| MODEL | POWERHEAD | OUTPUT | HP | MAX RPM | STAND | AIR HOSE | SHAFT | IMPELLERS |
|---|---|---|---|---|---|---|---|---|
| LD - 1000X | LD - 101B | 3/8” Chuck | 0.42 | 10,000 | AX-1 | 1/4" X 4' (1/8" NPT) | (2) 12"x5/16" | MF-DFH-21, MF-DFH-31 |
| LD - 1000X/A | LD - 101A | 5/16" Coupling | 0.42 | 10,000 | AX-1 | 1/4" X 4' (1/8" NPT) | (2) 12"x5/16" | MF-DFH-21, MF-DFH-31 |
| LD - 2000X | LD - 102A | 1/2" keyed Chuck | 0.95 | 3,000 | AX-23 | 3/8" x 5' (1/4 NPT) | 12”x3/8”,15”x1/2”,18”x1/2” | MF-DFH-32, MF-DFH-43, MF-DFH-53 |
| LD - 2000X/C | LD - 102C | 1/2" Keyless Chuck | 0.95 | 3,000 | AX-23 | 3/8" x 5' (1/4 NPT) | 12”x3/8”,15”x1/2”,18”x1/2” | MF-DFH-32, MF-DFH-43, MF-DFH-53 |
| LD - 3000X | LD - 103A | 1/2" Keyed Chuck | 1.70 | 3,000 | AX-23 | 3/8" x 5' (1/4 NPT) | 15”x3/8”,(x2) 18”x1/2” | MF-DFH-32, MF-DFH-43, MF-DFH-53 |
| LD - 3000X/C | LD - 103C | 1/2" Keyless Chuck | 1.70 | 3,000 | AX-23 | 3/8" x 5' (1/4 NPT) | 15”x3/8”,(x2) 18”x1/2” | MF-DFH-32, MF-DFH-43, MF-DFH-53 |
| LD - 4000X | LD - 104A | 1/2" Keyed Chuck | 4.0 | 3,000 | AX-23 | 1/2" X 10' (1/2" NPT) | (3) 18"x1/2" | MF-DFH-43, MF-DFH-53, MF-DFH-63 |
| LD - 4000X/C | LD - 104C | 1/2" Keyless Chuck | 4.0 | 3,000 | AX-23 | 1/2" X 10' (1/2" NPT) | (3) 18"x1/2" | MF-DFH-43, MF-DFH-53, MF-DFH-63 |
*Ratings are at max motor pressure of 100psi. Motors should never be operated under a no-load/free spinning condition. Max RPM rating is for speeds under load
CL Series
Portable Clamp Mount Air Mixers
Designed for use on 5-10 gallon open pails & containers, the CL-Clamp Mount Series features multiple axis adjustments for versatile all angle agitation.
Features:
-
Direct drive air motor
-
Drop forged c-clamp with non-corrosive plating
-
Other shaft sizes and impellers available as special order
-
All wetted parts are 304 stainless steel
-
Noise reducing exhaust muffler
-
Variable speed control valve
-
Poweheads come with sleeve couplings
Upgrades & Options
| MODEL | CL-1000 | CL-2000 | CL-3000 |
|---|---|---|---|
| HP | 0.42 | 0.95 | 1.7 |
| MAX RPM | 3000 | 3000 | 3000 |
| MAX AIR REQUIREMENTS | 20.5 CFM | 30 CFM | 78 CFM |
| AIR INLET 1 | ⁄8 NPT | ¼ NPT | ¼ NPT |
| SHAFT LENGTH | 15" | 15" | 15" |
| BLADES | (1) 3" R | (1) 4" R | (1) 5" H |
*Ratings are at max motor pressure of 100psi. Motors should never be operated under a no-load/free spinning condition. Max RPM rating is for speeds under load
FLM Series
Pail Lid Mixers
Five-gallon lid mount (FLM) Series Mixers are integrated into the lid of a 5-gallon bucket or pail. They are portable, lightweight, and easy to use solutions for mixing a variety of materials.
Offered as a complete system with pail, or as a Lid Only (LD) version to mount on your existing pails
Features:
-
5 Gallon painted steel pail with rust inhibitor interior
-
Pour spout included on pail standard
-
Air motors are explosion-proof and lightweight
-
Variable speed valve
-
Noise dampening mu er
-
5" MixedFLOW™ impeller included
-
All wetted parts in 304 stainless steel
Upgrades & Options
| MODEL | FLM-1 | FLM-1/LD (LESS PAIL) | FLM-1.8 | FLM1.8/LD (LESS PAIL) |
|---|---|---|---|---|
| HP | 1.0 | 0.95 | 1.7 | 1.7 |
| MAX RPM | 3000 | 3000 | 3000 | 3000 |
| MAX AIR REQUIREMENTS | 30 CFM | 30 CFM | 72 CFM | 72 CFM |
| AIR INLET 1 | ⁄8 NPT | ¼ NPT | ¼ NPT | ¼ NPT |
| VISCOSITY RANGE | Low | Low | Medium Low | Medium Low |
Keyless Chucks Now Available!
Handheld Mixing Tools & Accessories

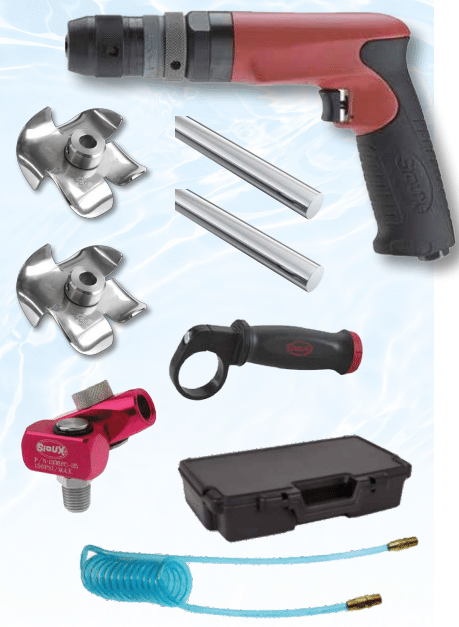

Pneumatic Pistol Grip Hand Drill
Fawcett Approved for Mixing Applications
A rare combination of power, speed, and chuck capacity in a lightweight and ergonomic tool make this a perfectly suited drill for mixing applications. Fawcett’s top pick after researching major pneumatic tool manufacturers.
Mix one gallon and five gallon batches up to 1000 centipoise
| MODEL | HM-1HP-P-K | HM-1HP-P-KL |
|---|---|---|
| HP | 1.0 | 1.0 |
| CHUCK STYLE | Keyed | Keyless |
| CHUCK CAPACITY | ½" Diameter | ½” Diameter |
| FREE SPEED | 2600 RPM | 2600 RPM |
| REVERSIBLE | No | No |
| WEIGHT | 2.9 LBS | 3.15 LBS |
| LENGTH | 7.5" | 8.1" |
| SIDE TO CENTER | 0.8" | 0.8" |
| MAX AIR CONSUMPTION | 30 CFM" | 30 CFM |
| SOUND LEVEL | 80 dB(A) | 80 dB(A) |
| AIR INLET SIZE | ¼" NPT | ¼” NPT |
| RECOMMENDED HOSE SIZE | 3⁄8" | 3⁄8" |
Call For Quote
Air Inlet Flow Control With Swivel
Regulate the air flow to limit tool speed and give better control over mixing. Allows the air house to rotate 360° on 2 axes.
| PART # | DESCRIPTION |
|---|---|
| HMV-1 | 1/4" NPT regulated air swivel connector with safety pin |
Drill Support Handle
Improve stability and operator comfort during operation. Attaches easily to signature series pistol grip drills.
| PART # | DESCRIPTION |
|---|---|
| HM-PHANDLE | Additional Support Handle for Pistol Grip Drill |
EPM SERIES Ergonomic Pail Mixer
Improve ergonomics and batch process time with this innovative pail-mixer design from HMJ Tech. The patented counter-balance arm raises and lowers with minimal effort. Locks into place when lowered and shuts-off power to the mixer when raised. Setup is easy with unit shipping pre-assembled and ready in a small-parcel package. Operation requires only a single air hose attachment.
Features:
-
NO ASSEMBLY REQUIRED
-
SUPERIOR ERGONOMICS
-
EASY TO CLEAN
- Impeller drip tray (removable/washable)
-
EASY TO OPERATE
- Spring assisted
- 3 position rotation for multiple pails
-
FITS MOST PAILS
-
MECHANICAL AIR SAFETY INTERLOCK
- Motor stops when raised
- Motor will not automatically start when lowered
-
ATEX / EXPLOSION PROOF*
-
ANCHOR HARDWARE INCLUDED
Specifications
| PART # | DESCRIPTION |
|---|---|
| EPM 1.0 | Ergonomic Pail MixerHandle for Pistol Grip Drill |
| EPM 1.0 LF | Ergonomic Pail Mixer Lube Free |
Call us to learn about available upgrades
*proper installation and grounding required
** LF model 90 psi max
PM/PMC Series
Lid Mount 55-Gal Drum Mixers
Fawcett’s extra powerful 3 and 5 hp direct drive air-operated mixers for drums and tanks are designed to effectively mix liquids without costly spills or splashing. Also available are versions for use with tote tanks and various other tanks.
Features:
-
Direct Drive Air Motor
-
Available to mount on your existing lid or lid options included. Plain or Stainless Steel
-
MixedFLOW™ Impellers
-
All wetted parts in 304 stainless steel
-
Noise Dampening exhaust mu er
-
Variable Speed Control valve
Upgrades & Options
| MODEL | HP | MAX RPM | MAX AIR CONSUMPTION | AIR INLET | LID INCLUDED | IMPELLERS INCLUDED | VISCOSITY |
|---|---|---|---|---|---|---|---|
| PM - 208 | 1.0 | 3000 | 30 CFM | 1/4 NPT | None | (1) 4” H | Low |
| PM - 208/23 | 1.0 | 3000 | 30 CFM | 1/4 NPT | None | (2) 4“ H | Low |
| PMC - 208 | 1.0 | 3000 | 30 CFM | 1/4 NPT | Plain Steel | (1) 4” H | Low |
| PMC - 208/23 | 1.0 | 3000 | 30 CFM | 1/4 NPT | Plain Steel | (2) 3” H | Low |
| PMC - 208S | 1.0 | 3000 | 30 CFM | 1/4 NPT | Stainless Steel | (1) 4” H | Low |
| PM - 308 | 1.7 | 3000 | 78 CFM | 1/4 NPT | None | (1) 6” H | Medium Low |
| PM - 308/25 | 1.7 | 3000 | 78 CFM | 1/4 NPT | None | (2) 5” H | Medium Low |
| PMC - 308 | 1.7 | 3000 | 78 CFM | 1/4 NPT | Plain Steel | (1) 6” H | Medium Low |
| PMC - 308/25 | 1.7 | 3000 | 78 CFM | 1/4 NPT | Plain Steel | (2) 5” H | Medium Low |
| PMC - 308S | 1.7 | 3000 | 78 CFM | 1/4 NPT | Stainless Steel | (1) 6” H | Medium Low |
| PM - 408 | 4 | 3000 | 128 CFM | 1/4 NPT | None | (2) 6” H | Medium |
| PMC - 408D | 4 | 3000 | 128 CFM | 1/4 NPT | Plain Steel | (2) 6” H | Medium |
| PMC - 408D/S | 4 | 3000 | 128 CFM | 1/2 NPT | Stainless Steel | (2) 6” H | Medium |
| PM - 508 | 5.25 | 2500 | 175 CFM | 1/2 NPT | None | (1) 8” H | Medium High |
| PMC - 508D | 5.25 | 2500 | 175 CFM | 1/2 NPT | Plain Steel | (1) 8” H | Medium High |
| PMC - 508D/S | 5.25 | 2500 | 175 CFM | 1/2 NPT | Stainless Steel | (2) 8” H | Medium High |
*Ratings are at max motor pressure of 100psi. Motors should never be operated under a no-load/free spinning condition. Max RPM rating is for speeds under load
OD/OT Series
Clamp Mount Mixers
Open Drum/Open Tank (OD/OT) Series Clamp Mount Mixers are designed for mixing in open top containers. They feature cast iron, corrosion resistant plated clamp assembly and clamp block allowing for versatile impeller positioning. Larger models incorporate a dual clamp system for extra support and stability.
Features:
-
55 gal drums up to 300 gallon open tank
-
MixedFLOW™ Impeller/s
-
Heavy duty corrosion resistant clamp mounting
-
All wetted parts are 304 stainless steel
-
Variable speed control valve
-
Noise dampening muffler
Upgrades & Options
| MODEL | CONTAINER CAPACITY | HP | MAX RPM | MAX AIR REQUIREMENT | AIR INLET | VISCOSITY RANGE | BLADE TYPE |
|---|---|---|---|---|---|---|---|
| OD-202 | 55 Gal | 1.0 | 3,000 | 30 CFM | 1/4 NPT | Low | (1) 5” H |
| OD-203 | 55 Gal | 1.7 | 3,000 | 72 CFM | 1/4 NPT | Medium Low | (1) 5” H |
| OD-204 | 55 Gal | 1.7 | 3,000 | 72 CFM | 1/4 NPT | Medium Low | (2) 5” H |
| OD-206 | 55 Gal | 1.7 | 3,000 | 72 CFM | 1/4 NPT | Medium Low | (1) 6” H |
| OD-208 | 55 Gal | 4.0 | 3,000 | 128 CFM | 1/2 NPT | Medium Low | (2) 6” H |
| OD-215 | 55 Gal | 5.25 | 2,500 | 175 CFM | 1/2 NPT | High | (1) 8” H |
| OT-210 | Up to 300 Gal | 4.0 | 3,000 | 128 CFM | 1/2 NPT | Medium High | (2) 6” H |
| OT-215 | Up to 300 Gal | 5.25 | 2,500 | 175 CFM | 1/2 NPT | High | (2) 8” H |
*Ratings are at max motor pressure of 100psi. Motors should never be operated under a no-load/free spinning condition. Max RPM rating is for speeds under load
ADM Series
Agitator Drum Mixers
Agitator Drum Mixer (ADM) drive units thread onto the center bung of “Woodman Agitator” style in-drum agitator systems1 . May be used in open & tight head drums. These units have a square drive coupling that engages with the 7/16th square shaft of the in-drum agitator assembly. Alocking nut allows for the unit to be tightened down once coupling is engaged.
| MODEL | ADM-2 | ADM-3 | ADM-4 |
|---|---|---|---|
| BUNG MOUNT THREAD SIZE2 | 1½ NPT | 1½ NPT | 1½ NPT |
| MOTOR NOMINAL HP | 1 | 1¾ | 4 |
| MAX TORQUE | 26 LB-IN | 56 LB-IN | 115 LB-IN |
| SPEED @ MAX TORQUE | 350 RPM | 300 RPM | 300 RPM |
| MAX FREE SPEED3 | 3000 RPM | 3000 RPM | 3000 RPM |
| TORQUE AT MAX SPEED | 19.5 LB-IN | 36 LB-IN | 84 LB-IN |
| AIR INLET SIZE | ¼" | ¼” | ½ |
| MAX AIR PRESSURE | 100 PSI | 100 PSI | 100 PSI |
| MAX AIR CONSUMPTION | 30 CFM | 78 CFM | 128 CFM |
| MOTOR PART NUMBER4 | 20A | 30A | 40A |
Viscosity Guide
| VISCOSITY (CPS) | 15 GAL | 30 GAL | 55 GAL |
|---|---|---|---|
| 1–400 | ADM-2 | ADM-2 | ADM-3 |
| 400–3000 | ADM-3 | ADM-3 | ADM-3 |
| 3000–9000 | ADM-4 | ADM-4 | ADM-4 |
-
”Woodman Agitator” style drums and in-drum agitation blades sold separately
-
Properly measure the ID of your bung threads and square drice shaft before ordering
-
Unmounted motor with maximum air flow, once coupled to agitator drum the load will have impact. Do not operate unit without any fluid in drum.
-
For more detailed specs on motor reference doc #XXXX
BHM Series
Bung Mount Mixers
Bung Hole Mount (BHM) Series Mixers are designed fo use on a closed (tight head) streel drum of low to medium viscosity materials. The threaded mount quickly and easily screws into a 2” drum lid bung hole.

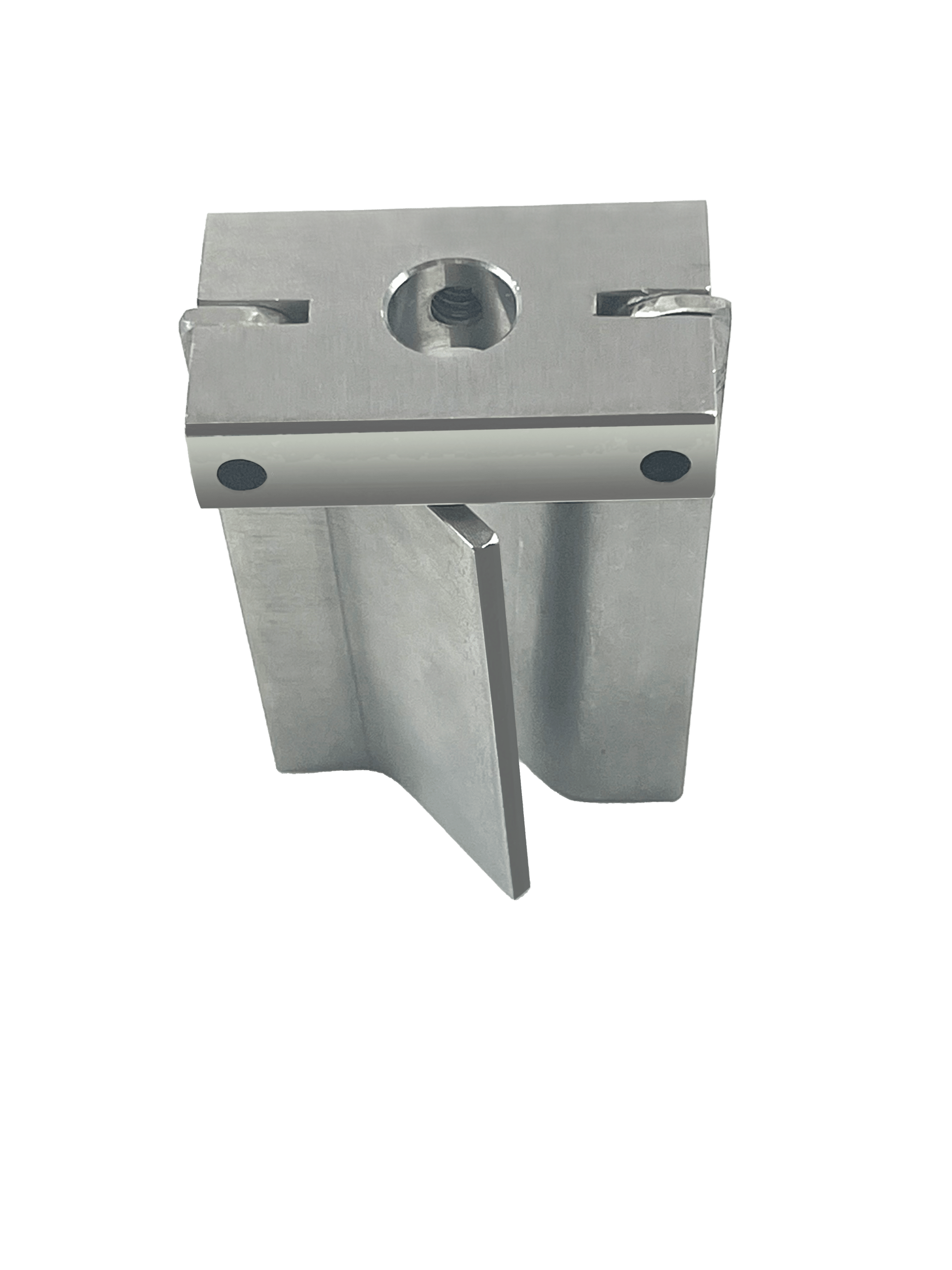

Collapsible impellers fit through the 2” opening and expanmd to 4” in diameter when in operation.
Features:
-
2” NPT drum connection
-
Designed for 55 gallon drum (shaft length can be modified)
-
Quick mounting
-
All wetted parts are 304 Stainless Steel
-
Variable speed control valve
-
Noise dampening exhaust muffler
| MODEL | BHM-2A | BHM-3A | BHM-4A |
|---|---|---|---|
| HP | 1 | 1.7 | 4 |
| MAX RPM | 3000 | 3000 | 3000 |
| MAX AIR REQUIREMENTS | 30 CFM | 72 CFM | 128 CFM |
| AIR INLET | ¼ NPT | ¼ NPT | ½ NPT |
| VISCOSITY RANGE | Low | Medium Low | Medium High |
| SHAFT SIZE | ½" x 30" | ½” x 30” | ½” x 30” |
| IMPELLERS | (2) 4" Folding | (2) 4” Folding | (2) 4” Folding |
*Ratings are at max motor pressure of 100psi. Motors should never be operated under a no-load/free spinning condition. Max RPM rating is for speeds under load
Pail & Vat Stations
Fawcett’s integrated air manifold workbenches provide a turnkey solution for a multi-station open tank blending operation. Consolidate, organize, and optimize your production output with this purpose-built station. Offered in two lengths and two working heights each bench accommodates 4 mixing vats up to 18” in diameter with stand rods to mount 4 Fawcett LS powerheads
The enclosed design allows for flexible installation in hazardous location facilities and easy cleaning and maintenance. All that is required to operate is to supply compressed air through a single inlet port.
| MODEL | OVERALL DIMENSIONS (LxDxH) | BENCH HEIGHT |
|---|---|---|
| WS-6.18-V3 | 72” x 25.5” x 49” | 18” |
| WS-6.26-V3 | 72” x 25.5” x 49” | 26” |
| WS-8.18-V3 | 92” x 25.5” x 49” | 18” |
| WS-8.26-V3 | 92” x 25.5” x 49” | 26” |
*Built into the design is the ability to pipe away exhaust entirely through one main exhaust port (1 NPT), either to the left or right side (user to furnish necessary piping from port onward).
**Indicates height of backsplash, main air inlet and the motor support rods extend higher
Additional Features & Specifications
-
Holds vessels up to 18” in diameter
-
Connect compressed air supply via 3/4 NPT female port lubricator (Max flow 330 CFM at 110 PSI max
-
Includes four 3/4” diameter by 34” tall powerhead mounting rods (48” tall available upon request)
-
Individual motor supply and exhaust ports are 1/2 NPT female (1/4 NPT reducing bushings are provided)
Drum Stations
For 55 Gal. Drum.
Painted Steel with 3” Concrete Screws
Powerheads, Shafts, Blades, and Clamp Block to be ordered separately.
| PART # | DESCRIPTION |
|---|---|
| DX-55/2 | Dimensions 56” x 29” x 72.38” |
| DX-55 | Dimensions 32”Wide x 29”Deep x 72.38” Tall |
Work Station Power Head Kits
Fawcett table-top stirrers are adaptable to a wide variety of applications and batch sizes from small beakers to multi-gallon containers.
These direct drive models provide a wide speed and torque range.
Each lab stirrer kit comes with a powerhead, air hose, and a variety of stirrer shafts and Fawcett MixedFLOW™ Impellers.
Pail & Vat Power Head Kits
| PART # | DESCRIPTION |
|---|---|
| LS-2000WS | Work Station Powerhead Kit: 1 HP Air Motor [3,000 RPM Max; 30 CFM Max; 1/4” NPT Inlet; 1/2” Keyed Chuck] L-4 Clamp Block; Shafts [1ea (12”×5/16”, 5”×3/8”, 18”×1/2”)] Regular Pitch MixedFLOW Impellers [2”x 5/16” bore, 3x3/8” bore, 4x1/2” bore); Air hoses [3’x3/8”dia.1/2” NPT fittings] |
| LS-3000WS | Work Station Powerhead Kit: 1¾ HP Air Motor [3,000 RPM Max; 72 CFM Max; 1/4” NPT Inlet; 1/2” Keyed Chuck] L-4 Clamp Block; Shaft [12”×5/16”, (2) 18”×1/2)]; Regular Pitch MixedFLOW Impellers [3”×3/8” bore, 4x1/2” bore, 5”×1/2” bore)]; Air Hoses [3’x3/8”dia., 1/2”NPT fittings] |
| LS-4000WS | Work Station Powerhead Kit: 3.0 HP Air Motor [3,000 RPM Max; 128 CFM Max; 1/2” NPT Inlet; 1/2” Keyed Chuck] L-6 Clamp Block; Shaft [3 (18”x1/2)]; Regular Pitch MixedFLOW Impellers [4”×1/2” bore, 5”×1/2” bore, 6”×1/2” bore)]; Air Hoses [3’x3/8”dia., 1/2 NPT fittings.) |
Drum Station Power Head Kits
| PART # | DESCRIPTION |
|---|---|
| DM-104AWS | LS-104A Powerhead (w-1/2” Chuck), L-6 Clamp Block, (2) MF-63H Impellers, SB-34 Shaft & AHPL-205 Hose Assembly |
| DM-103AWS | LS-103A Powerhead (w-1/2” Chuck), L-4 Clamp Block, (2) MF-43H Impeller, SB-34 Shaft & AHPL-5 Hose Assembly |
TT Series
Plastic IBC Tote Mixers
Tote Tank (TT) Series Mixers are lightweight, and easy to handle.
Designed to mix powerfully and conveniently light to medium viscosity solutions using our MixedFLOW™ Impeller. These mixers come with a 6” vented screw cap that will fit on IBC totes.
Features:
-
Light Weight: Less than 15 lbs
-
Easy to mount and move
-
Mounted to a 6” Plastic, Vented Lid (9” available per request)
-
All wetted parts in 304 Stainless Steel
-
Variable Speed Control
-
Noise dampening exhaust muffler
Upgrades & Options
| MODEL | TT-102 | TT-103 | TT-103S | TT-104 | TT-104S |
|---|---|---|---|---|---|
| HP | 1.0 | 1.7 | 1.7 | 4.0 | 4.0 |
| MAX RPM | 3000 | 3000 | 3000 | 3000 | 3000 |
| MAX CFM | 30 | 72 | 72 | 128 | 128 |
| AIR INLET | ¼ NPT | ¼ NPT | ¼ NPT | ½ NPT | ½ NPT |
| VISCOSITY | Low | Medium Low | Medium Low | Medium High | Medium High |
| IMPELLERS | (1) 4" H | (1) 4" H | (2) 4" H | (1) 5" H | (2) 5" H |
| MODEL | ADDxx PBM | AGDxx PBM | EDDxx PBM | EGDxx PBM |
|---|---|---|---|---|
| DESCRIPTION | Air Direct Drive | Air Direct Drive | Electric Direct Drive | Electric Direct Drive |
| HP | 1.0–5.0 | 1.0–5.0 | 1.0–2.0 | 1.0–2.0 |
| MAX RPM | 3000 | 600 | 1800 | 360 |
| SHAFT SIZE | 5/8" or 3/4" | 1" | 5/8” or 3/4” | 1" |
| IMPELLERS | MixedFlowTM | M Folding | MixedFlowTM | Folding |
Please contact us to lear about available lid mounted models
Bridge Mount Series
For Plastic Caged IBC Totes
Fawcett Bridge Mount Mixers are designed for plastic caged IBC tote tanks. They secure to the caged frame using an adjustable hook. Available in both direct drive configurations for high speed blending or gear reduced configurations for slow speed, high-torque agitation. These units are highly configurable. Contact us for selecting.
Features:
-
Available with electric or pneumatic motors
-
Direct drive models utilize MixedFLOW™ impellers
-
Gear drive models utilize folding impellers
-
Optional VFD speed control and explosion proof motors on electric models
-
All wetted parts are 304 stainless steel
-
Noise reducing muffler
-
Variable speed control valve
Upgrades & Options
Plastic IBC Tote Bridge Mount
Adjustable mounting bracket. Bolt Pattern compatible with 56C and 145TC NEMA flange motors and gear boxes.
| MODEL | DESCRIPTION |
|---|---|
| BM-P | Fits caged bulk tanks from 34" to 48" wide |
Quick Decoupling
Tote Mixer
FOR STAINLESS STEEL IBCS
Trans-mix™ Tote Mixing Systems are comprised of two parts; a detachable upper/drive unit and a lower/wetted unit. Lower unuits should be selected based on tote size and stainless alloy, and upper units, based on power options and application needs. All lower units are compatible with all upper units.
Upgrades & Accessories
Upgrade or accessorize your Trans-mix™ mixing system with Air Motor Tachometer, Air Filters & Lubricators, Overhead Lifting Brackets, and more.
Scalable IBC Tote Agitation Systems
Quickly swap a single drive unit between any number of tanks for
cost savings and improved operational efficiency.
Tachometer Kits
Tachometer is factory installed upgrade available on new equipment.Retro fit service is also available for used motors in good condition. Inquire with us for retro fits. Kit includes: Tachometer, Motor End Cap replacement, Internal Shaft Adapter
| MODEL | DESCRIPTION |
|---|---|
| TK-2/3 | Tachometer Kit for 102 & 102 Motors |
| TK-4 | Tachometer Kit for 104 Motor |
*Ratings are at max motor pressure of 100psi. Motors should never be operated under a no-load/free spinning condition. Max RPM rating is for speeds under load
Upper/Drive Units
Air/Pneumatic, Electric or Hydraulic Detachable Drive Units
Air/Pneumatic Drive Units
From 1.8hp to 5hp Standard. Explosion Proof, Compact, Variable Speed, easy to Install and Operate.
Electric Drive Units
From 1.5hp to 3hp Standard. Efficient and Quiet with the ability to integrate into control systems.
Hydraulic Drive Units
Up to 1500 PSI and 8 GPM Standard. Extremely Compact, Variable Speed, Proven in the toughest conditions.
Lower/Wetted Units
Trans-mix™ Lower units easily attach to the tote cover and become integral to the tote. TML Lower Units pair with TMU Drive Units to make a complete system.
Features:
-
Feature a robust bearing and proprietary hex input shaft to transmit drive force
-
304 and 316 stainless steel options available
-
Bolt onto modified tote cover along with an FKM o-ring and PTFE gasket combo
-
1” Diameter Shaft w/ PTFE Lip Seals
-
14” & 16” Axial Turbine Blades W/ Bead Blast Finish (standard)
-
Custom Lengths available upon request
-
Tote Cover/Lid not included
| MODEL | DESCRIPTION |
|---|---|
| TML-304-20.5 | 20.5” (Used on 180 Gal. Metal IBC Totes) |
| TML-304-26.5 | 26.5” (Used on 215 or 250 Gal. Metal IBC Totes) |
| TML-304-32.5 | 32.5” (Used on 260 or 300 Gal. Metal IBC Totes) |
| TML-304-38.5 | 38.5” (Used on 305 or 350 Gal. Metal IBC Totes) |
| TML-304-50 5 | 50.5” (Used on 395 or 450 Gal. Metal IBC Totes) |
| TMI-304-62 5 | 62.5” (Used on 485 or 550 Gal. Metal IBC Totes) |
| TML-304-CUSTOM | Custom Length |
Steel IBC Tote Plate Mount
Fawcett Bridge Mount Mixers are designed for plastic caged IBC tote tanks. They secure t o the caged frame using an adjustable hook. Available in both direct drive configurations for high speed blending or gear reduced configurations for slow speed, high-torque agitation. These units are highly configurable. Contact us for selecting.
| MODEL | DESCRIPTION | HP | MAX RPM | SHAFT SIZE | AXIAL TURBINE BLADE |
|---|---|---|---|---|---|
| ADDxx PM | Air Direct Drive | 1.0–5.0 | 3000 | 5/8" or 3/4" | MixedFlowTM |
| AGDxx PM | Air Direct Drive | 1.0–2.0 | 600 | 1" | Folding |
| EDDxx PM | Electric Direct Drive | 1.0–2.0 | 1800 | 5/8” or 3/4” | MixedFlowTM |
| EGDxx PM | Electric Direct Drive | 1.0–2.0 | 360 | 1" | Folding |
Steel IBC Bridge Mount
This light weight, robust bridge mount allows for the secure and efficient attachment of mixing equipment to steel tote containers, ensuring consistent and thorough blending or agitation of liquids, powders, or other materials, while maintaining a safe operation. Crafted from high-quality materials, it offers exceptional durability, and stability, even when dealing with heavy or challenging mixing tasks. Available in air or electric and direct-drive (high speed) or gear-drive (slow speed) variants.
Steel IBC Bridge Only
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Duis non purus mauris. Suspendisse eget nibh ullamcorper, dictum magna et, elementum dolor. Donec vitae nibh sit amet mi fringilla malesuada. Curabitur porta sodales aliquet. Nullam suscipit sodales condimentum. Sed ornare efficitur tortor eu gravida.
| MODEL | DESCRIPTION |
|---|---|
| BM-S | Fits Steel Totes From 34” to 48” wide |
Lower/Wetted Units
Fawcett’s patented MixedFLOW™ impeller is unmatched in performance and efficiency. Our unique stainless steel shafts and MixedFLOW™ impellers make for a lightweight, durable, and easy-to-maintain mixing unit. They have several advantages over conventional bulkier cast impellers.
| MODEL | PITCH | BORE |
|---|---|---|
| MF-21R | Regular Pitch | 1 7/8” D x 5/16” |
| MF-22R | Regular Pitch | 1 7/8” D x 3/8” |
| MF-31R | 15” Length, 5/16” Diameter | 3” D x 5/16” |
| MF-32R | 15” Length, 5/16” Diameter | 3” D x 3/8” |
| MF-43R | 15” Length, 5/16” Diameter | 4” D 1/2” |
| MF-53R | 15” Length, 5/16” Diameter | 5” D 1/2” |
| MF-54R | 15” Length, 5/16” Diameter | 5” D 1/2” |
| MF-63R | 15” Length, 5/16” Diameter | 6” D x 1/2” |
| MF-64R | 15” Length, 5/16” Diameter | 6” D x 5/8” |
| MODEL | PITCH | BORE |
|---|---|---|
| MF-31H | High Pitch | 3” D x 5/16” |
| MF-22H | High Pitch | 1 7/8” D x 3/8” |
| MF-22H | High Pitch | 1 7/8” D x 3/8” |
| MF-32H | High Pitch | 3” D x 3/8” |
| MF-43H | High Pitch | 4” D x 1/2” |
| MF-53H | High Pitch | 5” D 1/2” |
| MF-54H | High Pitch | 5” D 1/2” |
| MF-63H | High Pitch | 6” D 1/2” |
| MF-64H | High Pitch | 6” D 1/2” |
| MF-84H | High Pitch | 8” D x 5/8” |
| MF-85H | High Pitch | 8” D x 3/4” |
Dispersion Blades
SS DISPERSION BLADES
F, GF, & K
High performance precision blades. Note: When ordering blades, add style letter to end of model number below. Example: MF-DKH-23 will get you the MF-23D with the K style blade. Use shafts SB-12 through SB-40.
| MODEL | BORE |
|---|---|
| MF-21R | 2" Dia. x 5/16" Bore |
| MF-DFH-22 | 2" Dia. x 3/8" Bore |
| MF-DFH-31 | 3" Dia. x 5/16" Bore |
| MF-DFH-32 | 3" Dia. x 3/8" Bore |
| MF-DFH-43 | 4" Dia. x 1/2" Bore |
| MF-DFH-44 | 4" Dia. x 5/8" Bore |
| MF-DFH-53 | 5" Dia. x 1/2" Bore |
| MF-DFH-54 | 5" Dia. x 5/8" Bore |
| MF-DFH-63 | 6" Dia. x 1/2" Bore |
| MF-DFH-64 | 6" Dia. x 5/8" Bore |
Bung Entering Folding Impeller
Closed to enter tank, open up when mixing. Mount anywhere on the mixing shaft. Made from 304 Stainless steel. 4 blade options by request only
| MODEL | BORE |
|---|---|
| BHI-4/4 | 4" D X 1/2" |
| BHI-4/5 | 4" D X 5/8" |
| BHI-7/4 | 7" D X 5/8" |
| BHI-7/5 | 7" D X 3/4" |
| BHI-10/5 | 10" D X 5/8" |
| BHI-12/5 | 12" D X 5/8" |
Paddle Shaft Assemblies
304 Stainless Stell Construction
| MODEL | SIZE | CLEARANCE |
|---|---|---|
| PS-50 | 4" Blade, 5/16" X 322" Shaft | 4" Open, 1" Closed |
| PS-20 | 3" Blade, 5/16" X 22" Shaft | 3" Open, 1" Closed |
Propellers
Made from 316 Stainless steel, Cast Propellers. Bores from 3/8” through 1”
| MODEL | CLEARANCE |
|---|---|
| MF 33P | 3/8" |
| MF 34P | 1/2" |
| MF 43P | 1/2" |
| MF 44P | 5/8" |
| MF 53P | 1/2" |
| MF 54P | 5/8" |
| MF 63P | 1/2" |
| MF 64P | 5/8" |
| MF 83P | 5/8" |
| MF 84P | 3/4" |
Turbine Blades
Made from 304 Stainless Steel. Welded construction, included Stainless Steel set screw and hex wrench.
| MODEL | SIZE |
|---|---|
| MF-110T | 10" SS Turbine Blade |
| MF-120T | 12" SS Turbine Blade |
| MF-140T | 14" Turbine Blade |
| MF-160T | 16" SS Turnine Blade |
Stainless Steel Shafts
Made from 303 Stainless Steel. Special order lengths available. Call customer service for a quote.
| MODEL | LENGTH | DIAMETER |
|---|---|---|
| S-9 | 9" | 5/16" |
| S-12 | 12" | 5/16" |
| S-15 | 15" | 5/16" |
| S-18 | 18" | 5/16" |
| S-24 | 24" | 5/16" |
| SA-9 | 9" | 3/8” |
| SA-12 | 12" | 3/8” |
| SA-15 | 15" | 3/8” |
| SA-18 | 18" | 3/8” |
| SA-24 | 24" | 3/8” |
| SB-12 | 12" | 1/2” |
| SB-15 | 15" | 1/2” |
| SB-18 | 18" | 1/2” |
| SB-40 | 40" | 1/2” |
| SC-30-1/2 | 30 1/2" | 5/8” |
| SC-34 | 34" | 5/8” |
| SC-40 | 40" | 5/8” |
| SD-30-1/2 | 30 1/2" | 3/4” |
| SD-34 | 34" | 3/4” |
| SD-40 | 40" | 3/4” |
Price Guarantee
Fawcett will not sacrifice quality for a lower price. We're committed to supplying our customers with quality equipment at a fair price. If you happen to find the same product at a lower price, Fawcett will match that price. Don't forget, Fawcett specializes in custom manufacturing of mixing equipment and accessories Simply contact our Customer Service Department at 330-659-4187 for further details.
Product Warranty
Our products are guaranteed against defective materials and workmanship. We will repair or replace such items as may prove defective at our option. Warranty period is one year on items manufactured by Fawcett. On items not manufactured by Fawcett, the manufacturers warranty applies. All component parts of our products are covered by this warranty, except for normal wear items such as impellers. We cannot be responsible for damage or abuse to equipment caused by improper installation or operation. Warranties can also be voided by unauthorized disassembly of equipment. For warranty repairs, equipment is returned to Fawcett at the customer's expense, we will repair and return to customer at our expense. Under no circumstances will we allow labor charges or other expense to repair defective merchandise. This warranty is exclusive and is in lieu of all other warranties, whether expressed or implied. Fawcett shall not be liable for any other damages, whether consequential, indirect, or incidental, arising from the sale or use of its products.
Returns and Exchanges
Please contact our Customer Service Department for all returns. Returns will not be accepted without an RMA number.
Same day shipping and rush shipments are usually available.
We ship stock items and other standard parts the same day we receive the order, if the order is placed with Fawcett before noon EST. If you need fast delivery of your order, FedEx or UPS Overnight or 2day service for most Fawcett products are options. Larger items are shipped via motor freight. Please contact our Customer Service Department for current lead times, available shipping options or other assistance.
Easy Ways to Order
Telephone: 330-659-4187
7:00am-4:30pm EST, Monday-Friday
Fax: 330-659-6991
24 Hours a day
Check our website for product information:
www.fawcettco.com
